Ferrari / 365 GT 2+2 MK2 from 12811 / 027 - Rear Axle & Axle

Reset

< Prev Next >

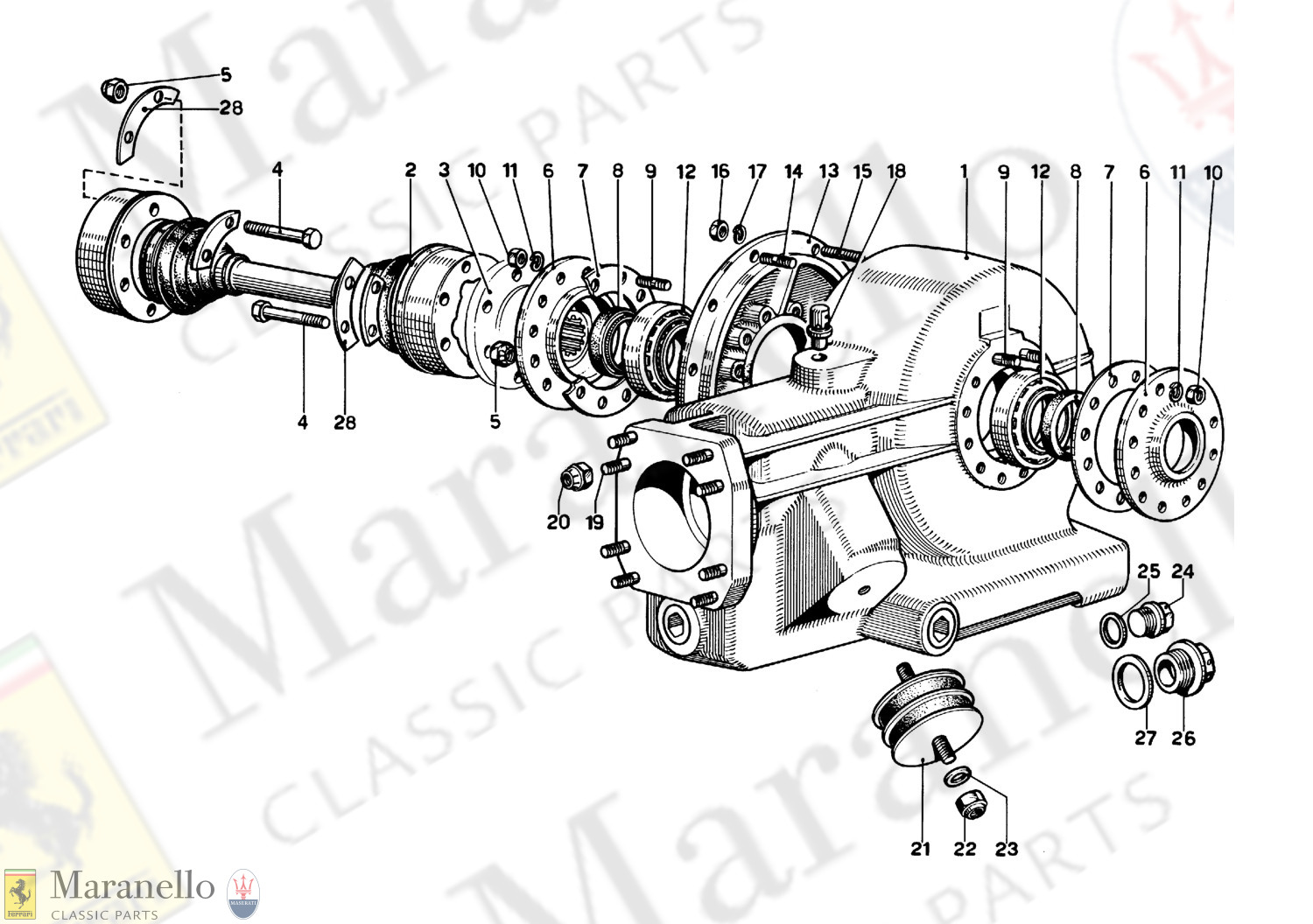

027 - Rear Axle & Axle

003 - Crankshaft, Connecting Rods And Pistons

004 - Cylinder Head (Right)

005 - Cylinder Head (Left)

006 - Weber 40 Df1/5 Carburettor

007 - Air Inlet With Blow-By

008 - Feeding And Controls

009 - Throttle Pedal

010 - Exhaust Pipes Assembly

011 - Timing (Controls)

012 - Timing (Accessories)

013 - Hydraulic Steering Pump And Controls

014 - Oil Pump And Filters

015 - Oil Pressure Valve

016 - Distributors & Controls

017 - Generator Accumulator Coils & Starter

018 - Clutch & Controls

020 - Lay Shaft

021 - Output Shaft

022 - Countershaft

023 - Gear Box Controls

024 - Rear Gear Box Housing

025 - Transmission Shaft

026 - Differential - Pinion And Crown

027 - Rear Axle & Axle

028 - Rear Suspension

029 - Rear Suspension - Damper And Self-Levelling Unit

030 - Front Wheel Suspension - Upper Arms

031 - Front Wheel Suspension - Bottom Arms

032 - Pedal Board - Clutch Control

033 - Pedal Board - Brake Control

034 - Brake System Scheme

035 - Front Brake Disc And Master-Cylinder

036 - Front & Rear Brakes Calipers

037 - Hand-Brake Control

038 - Rear Brake Disc And Wheel

039 - Steering Column

040 - Steering Linkage

041 - Radiator & Water Pump

042 - Fuel Tanks

043 - Air Conditioning

044 - Air Conditioning Layout Scheme

046 - Exhaust Pipes Assembly With Emissions Contol

047 - Ignition System With Emissions Control

048 - Air Pump With Emissions Control

049 - Generator With Emissions Control

050 - Idle Speed Control With Emissions Control

051 - Cooling System With Emissions Control

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
1	601587	Axle Housing	-	1	£1,289.91 (Exc VAT)				0
2	580449	Drive Shaft	-	2	POA (Exc VAT)			?	0
3	-	Flangia per semiasse	-	1	POA				0
4	11343721	Bolt	-	24	£0.39 (Exc VAT)				0
5	101633	Drive Shaft LockNut	MP -	24	£7.80 (Exc VAT)				0
6	601650	Flange	-	2	£122.19 (Exc VAT)				0
7	601383	Spacer	-	2	POA (Exc VAT)			?	0
	Alternative 601383/4	Shim 1.75Mm	N	2	£16.81 (Exc VAT)				0
8	125077	Oil Seal	-	2	£22.07 (Exc VAT)				0
9	95920406	Stud 8X20 P6	-	24	POA (Exc VAT)			?	0
10	103181	Nut 8x1	MP -	24	£1.94 (Exc VAT)				0
11	127496	Spring Washer 8mm	-	24	£0.05 (Exc VAT)			?	0
12	101634	Bearing For Differential Support	MP -	2	£118.53 (Exc VAT)				0
13	601581	Cover	-	1	POA (Exc VAT)			?	0
14	95920409	Stud 8X25 P2	MP -	11	POA (Exc VAT)			?	0
15	95920411	Stud 8x30 P2	-	1	POA (Exc VAT)			?	0
16	103181	Nut 8x1	MP -	12	£1.94 (Exc VAT)				0
17	127496	Spring Washer 8mm	-	12	£0.05 (Exc VAT)			?	0
18	4155741	Pressure Relief Valve	-	1	POA (Exc VAT)			?	0
19	95288	Stud	-	8	POA (Exc VAT)			?	0
20	101633	Drive Shaft LockNut	MP -	8	£7.80 (Exc VAT)				0
21	10983	Engine Mounting 86mm	-	2	POA (Exc VAT)			?	0
	Superseded by 100825	Engine Mount OD 86mm	MP N	2	£111.08 (Exc VAT)				0
22	95900604	Nyloc Nut N70 110Mb 10 x 1.0	-	2	£1.71 (Exc VAT)				0
23	92306	Washer	-	2	£1.83 (Exc VAT)				0
24	95940013	Drain Plug	MP -	1	£54.90 (Exc VAT)				0
25	95910608	Fibre Washer	-	1	POA (Exc VAT)			?	0
	Alternative 10279560	Copper Washer	N	1	£0.24 (Exc VAT)				0
26	95259	Sump Plug	-	1	POA (Exc VAT)			?	0
	Alternative 100826	Drain Plug	MP N	1	£103.68 (Exc VAT)				0
27	95260	Copper Washer	MP -	1	£10.58 (Exc VAT)				0
28	580553	Lock Tab	-	12	POA (Exc VAT)			?	0
	Superseded by 104184	Lock Tab	MP N	12	£7.29 (Exc VAT)				0
-	95860404	Drive Shaft Gaiter / Boot ADDITIONAL INFO	MP -	4	£12.69 (Exc VAT)				0
