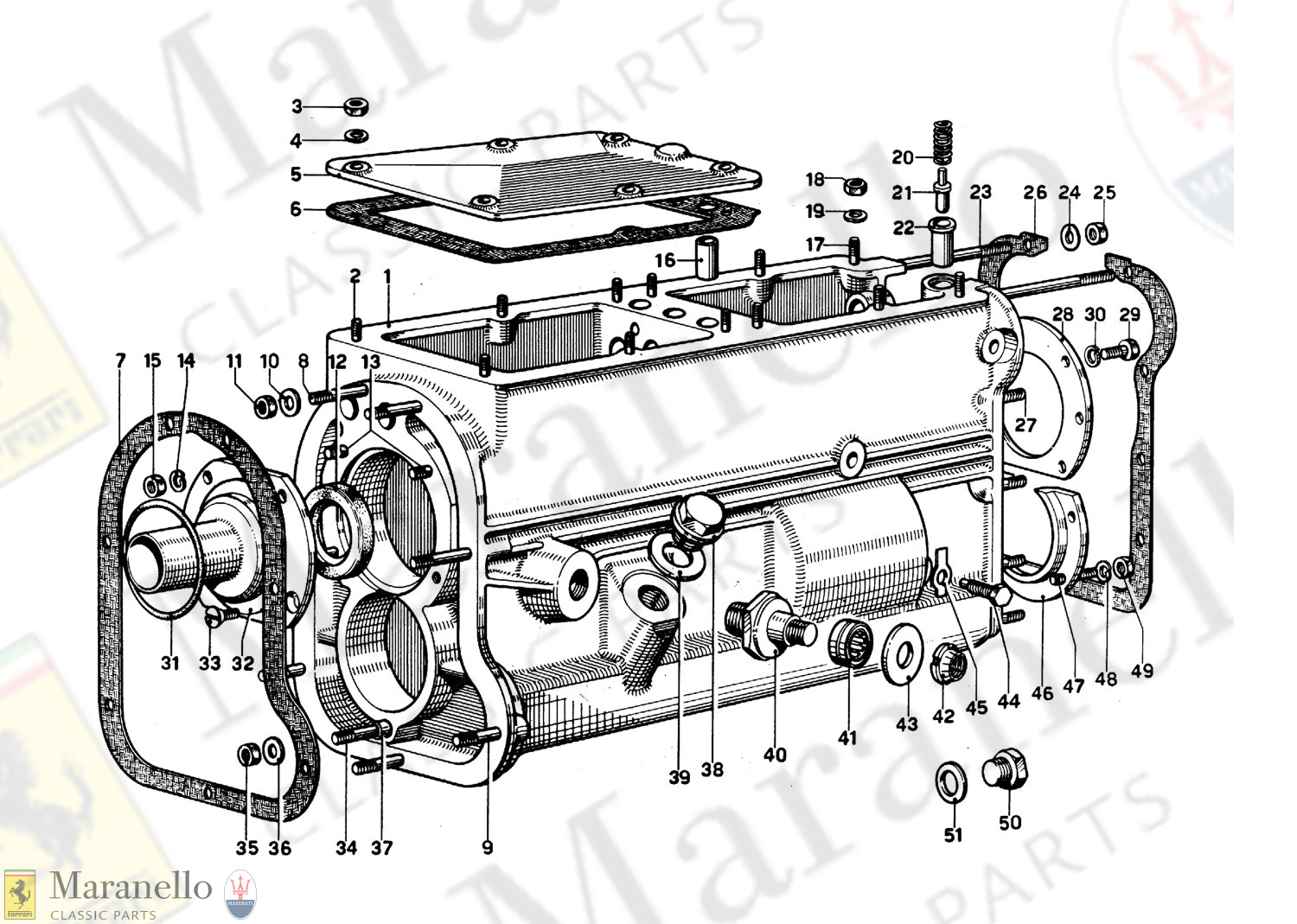

Ferrari / 365 GT 2+2 MK2 from 12811 / 019 - Gear Box

Reset

< Prev Next >

001 - Crankase

002 - Oil Sump

003 - Crankshaft, Connecting Rods And Pistons

004 - Cylinder Head (Right)

005 - Cylinder Head (Left)

006 - Weber 40 Df1/5 Carburettor

007 - Air Inlet With Blow-By

008 - Feeding And Controls

009 - Throttle Pedal

010 - Exhaust Pipes Assembly

011 - Timing (Controls)

012 - Timing (Accessories)

013 - Hydraulic Steering Pump And Controls

014 - Oil Pump And Filters

015 - Oil Pressure Valve

016 - Distributors & Controls

017 - Generator Accumulator Coils & Starter

018 - Clutch & Controls

023 - Gear Box Controls

024 - Rear Gear Box Housing

025 - Transmission Shaft

026 - Differential - Pinion And Crown

027 - Rear Axle & Axle

028 - Rear Suspension

029 - Rear Suspension - Damper And Self-Levelling Unit

030 - Front Wheel Suspension - Upper Arms

031 - Front Wheel Suspension - Bottom Arms

032 - Pedal Board - Clutch Control

033 - Pedal Board - Brake Control

034 - Brake System Scheme

035 - Front Brake Disc And Master-Cylinder

036 - Front & Rear Brakes Calipers

037 - Hand-Brake Control

038 - Rear Brake Disc And Wheel

039 - Steering Column

040 - Steering Linkage

041 - Radiator & Water Pump

042 - Fuel Tanks

043 - Air Conditioning

044 - Air Conditioning Layout Scheme

045 - ToolKit

046 - Exhaust Pipes Assembly With Emissions Contol

047 - Ignition System With Emissions Control

048 - Air Pump With Emissions Control

049 - Generator With Emissions Control

050 - Idle Speed Control With Emissions Control

051 - Cooling System With Emissions Control

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	523268	Casing	-	1	POA (Exc VAT)	?	0
2	95920104	Stud 6X14 P1	-	6	£0.93 (Exc VAT)		0
3	15896221	Nut	MP -	5	POA (Exc VAT)	?	0
	Superseded by 134041	Nut 6mm	N	5	£0.75 (Exc VAT)		0
4	127494	Wavy Washer 6mm Zinc Coated	-	6	£0.07 (Exc VAT)		0
5	520854	Gearbox Top Cover Plate	-	1	£31.64 (Exc VAT)		0
6	53047	Gasket	MP -	1	£16.30 (Exc VAT)		0
7	520622	Gasket	MP -	1	£3.65 (Exc VAT)		0
8	95920416	Stud 8X45 P2	-	5	POA (Exc VAT)	?	0
9	95920412	Stud 8x32 P2	MP -	2	£24.11 (Exc VAT)		0
10	12601374	Wavy Washer 8mm	-	7	£0.02 (Exc VAT)		0
11	103181	Nut 8x1	MP -	7	£1.94 (Exc VAT)		0
12	95850222	Oil Seal	MP -	1	£7.61 (Exc VAT)		0
13	95920401	Stud 8X14 P2	-	2	£0.88 (Exc VAT)		0
14	127496	Spring Washer 8mm	-	2	£0.05 (Exc VAT)	?	0
15	103181	Nut 8x1	MP -	2	£1.94 (Exc VAT)		0
16	521255	Bush	-	3	£9.43 (Exc VAT)	?	0
17	95920105	Stud 6x16 P1	MP -	6	POA (Exc VAT)	?	0
18	15896221	Nut	MP -	6	POA (Exc VAT)	?	0
19	127494	Wavy Washer 6mm Zinc Coated	-	6	£0.07 (Exc VAT)		0
20	53684	Selector Spring	MP -	1	£33.45 (Exc VAT)		0
21	520846	Pin	-	1	£12.58 (Exc VAT)	?	0
22	520847	Bush	-	1	£18.46 (Exc VAT)		0
23	95012	Stud 8x110 P2	-	2	£0.57 (Exc VAT)	?	0
24	12601374	Wavy Washer 8mm	-	12	£0.02 (Exc VAT)		0
25	103181	Nut 8x1	MP -	12	£1.94 (Exc VAT)		0
26	522905	Gasket	-	1	£3.14 (Exc VAT)		0
27	95920409	Stud 8X25 P2	MP -	10	POA (Exc VAT)	?	0
28	521220	Spacer	-	1	£24.88 (Exc VAT)		0
29	6x1x16 UNI-5739	Bullone	-	6	POA		0
30	127494	Wavy Washer 6mm Zinc Coated	-	6	£0.07 (Exc VAT)		0
31	95860024	O-Ring	MP -	1	£4.12 (Exc VAT)		0
32	521755	Flange	-	1	£137.64 (Exc VAT)		0
33	1VR8x15	Vite per flangia	-	2	POA		0
34	95920414	Stud 8x40 P2	-	1	POA (Exc VAT)	?	0
35	103181	Nut 8x1	MP -	1	£1.94 (Exc VAT)		0
36	12601374	Wavy Washer 8mm	-	1	£0.02 (Exc VAT)		0
37	100041	Dowel	-	1	£5.85 (Exc VAT)		0
38	95940013	Drain Plug	MP -	2	£54.90 (Exc VAT)		0
39	95910608	Fibre Washer	-	2	POA (Exc VAT)	?	0
	Alternative 10279560	Copper Washer	N	2	£0.24 (Exc VAT)		0
40	500495	Pin	-	1	£121.53 (Exc VAT)		0
41	100864	Roller Bearing	MP -	1	£36.86 (Exc VAT)		0
42	103225	Lock Ring	-	1	£13.68 (Exc VAT)	?	0
	Alternative 103225/A	Lock Ring (Nyloc)	MP N	1	£20.35 (Exc VAT)		0
43	500496	Washer	-	1	POA (Exc VAT)	?	0
44	521325	Bolt	-	1	£3.30 (Exc VAT)		0
45	92363	Locktab	-	1	POA (Exc VAT)	?	0
	Superseded by 100434	Lock Tab	MP N	1	£7.26 (Exc VAT)		0
46	521221	Flange	-	1	£45.13 (Exc VAT)		0
47	95920103	Stud 6X12 P1	-	4	£0.75 (Exc VAT)		0
48	127494	Wavy Washer 6mm Zinc Coated	-	4	£0.07 (Exc VAT)		0
49	15896221	Nut	MP -	4	POA (Exc VAT)	?	0
50	103974	Drain Plug M16	MP -	1	£25.70 (Exc VAT)		0
51	95910605	Fibre Washer 16GR2	-	1	£0.37 (Exc VAT)		0
