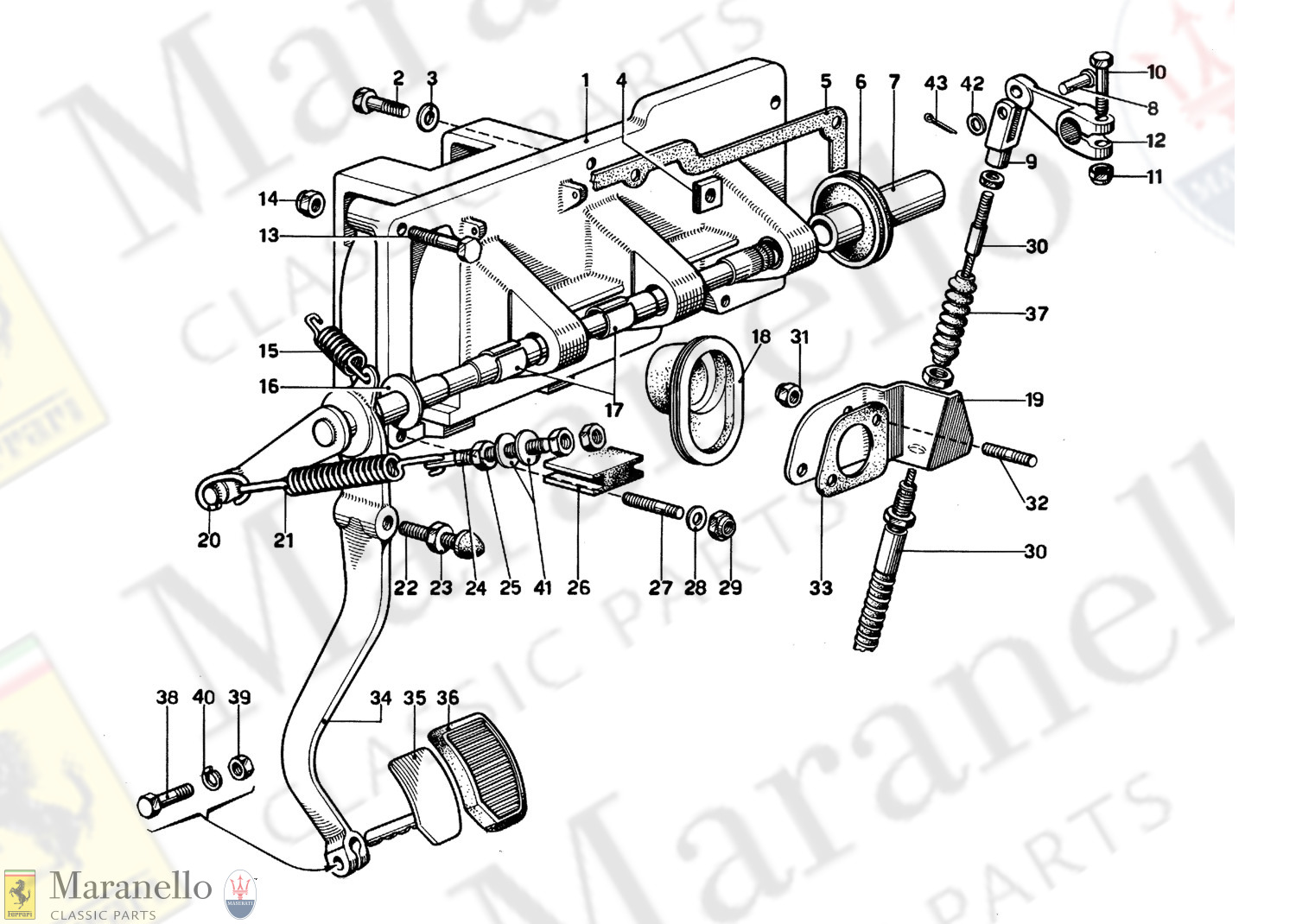

Ferrari / 365 GT 2+2 MK2 from 12811 / 032 - Pedal Board - Clutch Control

Reset

< Prev Next >

001 - Crankase

002 - Oil Sump

003 - Crankshaft, Connecting Rods And Pistons

004 - Cylinder Head (Right)

005 - Cylinder Head (Left)

006 - Weber 40 Df1/5 Carburettor

007 - Air Inlet With Blow-By

008 - Feeding And Controls

009 - Throttle Pedal

010 - Exhaust Pipes Assembly

011 - Timing (Controls)

012 - Timing (Accessories)

013 - Hydraulic Steering Pump And Controls

014 - Oil Pump And Filters

015 - Oil Pressure Valve

016 - Distributors & Controls

017 - Generator Accumulator Coils & Starter

018 - Clutch & Controls

023 - Gear Box Controls

024 - Rear Gear Box Housing

025 - Transmission Shaft

026 - Differential - Pinion And Crown

027 - Rear Axle & Axle

028 - Rear Suspension

029 - Rear Suspension - Damper And Self-Levelling Unit

030 - Front Wheel Suspension - Upper Arms

031 - Front Wheel Suspension - Bottom Arms

032 - Pedal Board - Clutch Control

033 - Pedal Board - Brake Control

034 - Brake System Scheme

035 - Front Brake Disc And Master-Cylinder

036 - Front & Rear Brakes Calipers

037 - Hand-Brake Control

038 - Rear Brake Disc And Wheel

039 - Steering Column

040 - Steering Linkage

041 - Radiator & Water Pump

042 - Fuel Tanks

043 - Air Conditioning

044 - Air Conditioning Layout Scheme

045 - ToolKit

046 - Exhaust Pipes Assembly With Emissions Contol

047 - Ignition System With Emissions Control

048 - Air Pump With Emissions Control

049 - Generator With Emissions Control

050 - Idle Speed Control With Emissions Control

051 - Cooling System With Emissions Control

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	660769	Pedal Support	-	1	POA (Exc VAT)	?	0
2	95193	Bolt	-	3	POA (Exc VAT)	?	0
3	127496	Spring Washer 8mm	-	3	£0.05 (Exc VAT)		0
4	94981	Nut	-	3	POA (Exc VAT)	?	0
5	660410	Rubber Gasket 275GTB	MP -	1	£7.96 (Exc VAT)		0
6	660686	Grommet	-	1	POA (Exc VAT)		0
7	660685	Distance Piece	-	1	POA (Exc VAT)	?	0
8	95427	Pin	-	1	£2.66 (Exc VAT)		0
9	500571	Fork	-	1	£39.08 (Exc VAT)		0
10	102294	Bolt	MP -	1	£2.63 (Exc VAT)		0
11	101139	Nyloc Nut 8x1.25mm	-	1	£0.26 (Exc VAT)		0
12	660688	Lever	-	1	£83.80 (Exc VAT)		0
13	8x55 UNI-5738	Bullone	-	1	POA		0
14	106013	Nyloc Nut	-	1	£1.82 (Exc VAT)		0
15	660343	Spring	-	1	POA (Exc VAT)	?	0
	Superseded by 101305	Clutch Pedal Return Spring	N	1	£56.99 (Exc VAT)		0
16	94670	Washer	-	1	£0.33 (Exc VAT)		0
17	95870314	Bush	-	1	£6.04 (Exc VAT)	?	0
18	660796	Column Gaiter	MP -	1	£75.17 (Exc VAT)	?	0
19	660681	Bracket	-	1	£128.74 (Exc VAT)		0
20	660304	Spring	-	1	POA (Exc VAT)	?	0
21	660346	Clutch Helper Spring	-	1	£55.85 (Exc VAT)	?	0
22	660344	Adjuster	-	1	POA (Exc VAT)	?	0
	Superseded by 101317	Adjuster	N	1	£27.20 (Exc VAT)		0
23	95900701	Nut 8X1.25 Uni5588	-	1	POA (Exc VAT)	?	0
	Alternative 133989	Plain Nut M8 x 1.25 x 6.5	N	1	£0.37 (Exc VAT)		0
24	660306	365GT 2+2 Brake Pedal Adj Rod	MP -	1	£45.04 (Exc VAT)		0
25	103181	Nut 8x1	MP -	3	£2.13 (Exc VAT)		0
26	660339	Rubber Block	MP -	1	£22.22 (Exc VAT)	?	0
27	8x16/P6	Prigioniero	-	1	POA		0
28	95930513	Washer	-	1	POA (Exc VAT)	?	0
29	106013	Nyloc Nut	-	1	£1.82 (Exc VAT)		0
30	500573	Clutch Cable	MP -	1	£118.75 (Exc VAT)		0
31	106013	Nyloc Nut	-	2	£1.82 (Exc VAT)		0
32	95920403	Stud 8X16 P2	-	2	POA (Exc VAT)	?	0
33	660682	Gasket	-	1	£3.47 (Exc VAT)		0
34	660777	Clutch Lever 365Gt2+2	-	1	£139.63 (Exc VAT)		0
35	660739	Pedal	-	1	POA (Exc VAT)	?	0
36	660736	Pedal Rubber	-	1	POA (Exc VAT)	?	0
37	500551	Boot	-	1	POA (Exc VAT)	?	0
	Superseded by 100858	Boot	MP N	1	£23.27 (Exc VAT)		0
38	95192	Bolt	-	1	POA (Exc VAT)	?	0
	Superseded by 101308	Bolt	N	1	£8.95 (Exc VAT)		0
39	103181	Nut 8x1	MP -	1	£2.13 (Exc VAT)		0
40	127496	Spring Washer 8mm	-	1	£0.05 (Exc VAT)		0
41	95129	Washer	-	2	POA (Exc VAT)	?	0
42	103044	Washer	-	1	POA (Exc VAT)	?	0
43	1,8x10/C1	Copiglia	-	1	POA		0
