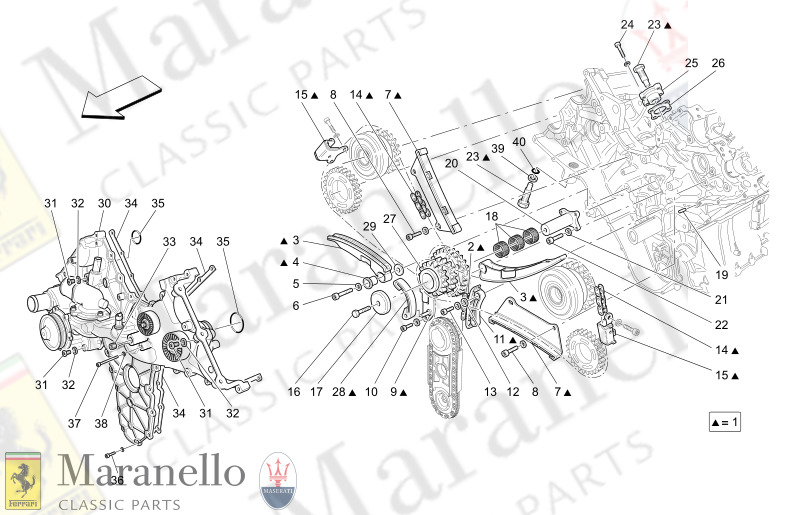

Maserati / GranTurismo C SPORT 2015 4700 cc AUTOMATIC / 01.24 - 1 TIMING

Reset

< Prev Next >

01.00 - 1 CRANKCASE

01.10 - 1 CRANK MECHANISM

01.11 - 1 AUXILIARY DEVICE BELTS

01.20 - 1 RH CYLINDER HEAD

01.21 - 1 LH CYLINDER HEAD

01.22 - 1 RH CYLINDER HEAD CAMSHAFTS

01.23 - 1 LH CYLINDER HEAD CAMSHAFTS

01.24 - 1 TIMING

01.25 - 1 VALVES

01.40 - 1 INTAKE MANIFOLD AND THROTTLE BODY

01.41 - 1 AIR FILTER, AIR INTAKE AND DUCTS

01.42 - 1 FUEL TANK

01.43 - 1 FUEL PUMPS AND CONNECTION LINES

01.44 - 1 FUEL VAPOUR RECIRCULATION SYSTEM

01.50 - 1 ADDITIONAL AIR SYSTEM

01.60 - 1 LUBRICATION SYSTEM CIRCUIT AND COLLECTIO

01.61 - 1 LUBRICATION SYSTEM PUMP AND FILTER

01.62 - 1 HEAT EXCHANGER

01.63 - 1 OIL VAPOUR RECIRCULATION SYSTEM

01.70 - 1 COOLING AIR RADIATORS AND DUCTS

01.71 - 1 COOLING SYSTEM NOURICE AND LINES

01.72 - 1 COOLING SYSTEM WATER PUMP

01.80 - 1 PRE-CATALYTIC CONVERTERS AND CATALYTIC C

01.81 - 1 SILENCERS

01.90 - 1 ELECTRONIC CONTROL INJECTION AND ENGINE

01.91 - 1 ELECTRONIC CONTROL ENGINE IGNITION

03.02 - 1 DRIVER CONTROLS FOR AUTOMATIC GEARBOX

03.10 - 1 GEARBOX HOUSINGS

03.10 - 2 GEARBOX HOUSINGS

03.21 - 1 DIFFERENTIAL AND REAR AXLE SHAFTS

03.30 - 1 TRANSMISSION SHAFT

03.50 - 1 LUBRICATION AND GEARBOX OIL COOLING

04.00 - 1 BRAKE SERVO SYSTEM

04.10 - 1 BRAKING DEVICES ON FRONT WHEELS

04.11 - 1 BRAKING DEVICES ON REAR WHEELS

04.20 - 1 LINES

04.30 - 1 PARKING BRAKE

04.90 - 1 BRAKING CONTROL SYSTEMS

05.00 - 1 STEERING COLUMN AND STEERING WHEEL UNIT

05.10 - 1 STEERING RACK AND HYDRAULIC STEERING PUM

05.20 - 1 COMPLETE PEDAL BOARD UNIT

06.00 - 1 WHEELS AND TYRES

06.10 - 1 FRONT SUSPENSION

06.11 - 1 FRONT SHOCK ABSORBER DEVICES

06.12 - 1 FRONT UNDERCHASSIS

06.20 - 2 REAR SUSPENSION Available with GRAN

06.21 - 1 REAR SHOCK ABSORBER DEVICES

06.22 - 1 REAR CHASSIS

06.90 - 1 ELECTRONIC CONTROL (SUSPENSION)

07.00 - 1 FRONT AIRBAG SYSTEM

07.01 - 1 PASSENGER'S AIRBAG-DEACTIVATION

07.02 - 1 FRONT SIDE BAG SYSTEM

07.05 - 1 CRASH SENSORS

07.10 - 1 FRONT SEATBELTS

07.11 - 1 REAR SEAT BELTS

07.20 - 1 TYRE PRESSURE MONITORING SYSTEM Av

07.30 - 1 ACCESSORIES PROVIDED

07.30 - 2 ACCESSORIES PROVIDED

07.31 - 1 AFTER MARKET ACCESSORIES

07.31 - 2 AFTER MARKET ACCESSORIES

08.00 - 1 EXTERNAL VEHICLE DEVICES

08.10 - 1 INTERNAL VEHICLE DEVICES

08.20 - 1 ENERGY GENERATION AND ACCUMULATION

08.30 - 1 HEADLIGHT CLUSTERS Available with

08.31 - 1 TAILLIGHT CLUSTERS

08.32 - 1 SIDE LIGHT CLUSTERS

08.39 - 1 LIGHTING SYSTEM CONTROL Available

08.40 - 1 AC UNIT ENGINE COMPARTMENT DEVICES

08.40 - 2 AC UNIT ENGINE COMPARTMENT DEVICES

08.41 - 1 AC UNIT DASHBOARD DEVICES

08.42 - 1 AC UNIT DIFFUSION

08.49 - 1 AC UNIT ELECTRONIC CONTROL

08.50 - 1 DASHBOARD DEVICES

08.51 - 1 CENTRE CONSOLE DEVICES

08.52 - 1 DOOR DEVICES

08.53 - 1 ALARM AND IMMOBILIZER SYSTEM

08.53 - 2 ALARM AND IMMOBILIZER SYSTEM

08.60 - 1 MAIN WIRING

08.60 - 2 MAIN WIRING

08.61 - 1 RELAYS, FUSES AND BOXES

08.70 - 1 SOUND DIFFUSION SYSTEM

08.71 - 1 IT SYSTEM

08.71 - 2 IT SYSTEM

08.72 - 1 RECEPTION AND CONNECTION SYSTEM

08.72 - 2 RECEPTION AND CONNECTION SYSTEM

09.00 - 1 BODYWORK AND FRONT OUTER TRIM PANELS

09.01 - 1 BODYWORK AND CENTRAL OUTER TRIM PANELS

09.02 - 1 BODYWORK AND REAR OUTER TRIM PANELS

09.03 - 1 FRONT STRUCTURAL FRAMES AND SHEET PANELS

09.04 - 1 CENTRAL STRUCTURAL FRAMES AND SHEET PANE

09.05 - 2 REAR STRUCTURAL FRAMES AND SHEET PANELS

09.10 - 1 FRONT BUMPER Available with GRANCA

09.11 - 1 REAR BUMPER

09.12 - 1 PARKING SENSORS Available with GRA

09.13 - 1 WHEELHOUSE AND LIDS

09.14 - 1 UNDERBODY AND UNDERFLOOR GUARDS

09.15 - 1 SHIELDS, TRIMS AND COVERING PANELS

09.15 - 2 SHIELDS, TRIMS AND COVERING PANELS

09.16 - 1 TRIMS, BRANDS AND SYMBOLS

09.17 - 1 STICKERS AND LABELS

09.20 - 1 FRONT LID

09.20 - 1 FRONT LID Available with GRANCABRI

09.21 - 1 REAR LID

09.22 - 1 FUEL TANK DOOR AND CONTROLS

09.23 - 1 FRONT LID OPENING BUTTON

09.24 - 1 REAR LID OPENING CONTROL

09.30 - 1 FRONT DOORS TRIM PANELS Available

09.30 - 1 FRONT DOORS TRIM PANELS Not availa

09.31 - 1 FRONT DOORS MECHANISMS

09.34 - 1 WINDOWS AND WINDOW STRIPS

09.35 - 1 INTERNAL AND EXTERNAL REAR-VIEW MIRRORS

09.40 - 5 FRONT SEATS TRIM PANELS Available

09.40 - 6 FRONT SEATS TRIM PANELS Available

09.41 - 3 FRONT SEATS MECHANICS AND ELECTRONICS

09.41 - 4 FRONT SEATS MECHANICS AND ELECTRONICS

09.42 - 5 REAR SEATS TRIM PANELS Available w

09.42 - 6 REAR SEATS TRIM PANELS Available w

09.44 - 1 PASSENGER COMPARTMENT B PILLAR TRIM PANE

09.45 - 1 ROOF AND SUN VISORS Available with

09.45 - 1 ROOF AND SUN VISORS Not available

09.50 - 1 DASHBOARD UNIT Available with CENT

09.50 - 1 DASHBOARD UNIT Not available with

09.51 - 1 ACCESSORY CONSOLE AND CENTRE CONSOLE

09.52 - 1 GLOVE COMPARTMENTS Available with

09.52 - 1 GLOVE COMPARTMENTS Not available w

09.60 - 1 PASSENGER COMPARTMENT MATS Availab

09.60 - 1 PASSENGER COMPARTMENT MATS Not ava

09.61 - 1 LUGGAGE COMPARTMENT MATS Available

09.61 - 1 LUGGAGE COMPARTMENT MATS Not avail

09.62 - 1 SOUND-PROOFING PANELS INSIDE THE VEHICLE

09.63 - 1 THERMAL INSULATING PANELS

09.80 - 1 ELECTRICAL CAPOTE LININGS Availabl

09.80 - 1 ELECTRICAL CAPOTE LININGS Not avai

09.81 - 1 ELECTRICAL CAPOTE COVERS Available

09.81 - 1 ELECTRICAL CAPOTE COVERS Not avail

09.82 - 1 ELECTRICAL CAPOTE TOP HOUSING

09.83 - 1 ELECTRICAL CAPOTE ROLL BAR AND ACCESSORI

09.84 - 1 ELECTRICAL CAPOTE CLOSINGS AND MICROSWIT

09.87 - 1 ELECTRICAL CAPOTE FLAPS Available

09.87 - 1 ELECTRICAL CAPOTE FLAPS Not availa

09.88 - 1 ELECTRICAL CAPOTE HYDRAULIC SYSTEM

09.89 - 1 ELECTRICAL CAPOTE ELECTRONIC CONTROL

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	319940	Oil Pump and Timing System Assembly	-	1	£996.00 (Exc VAT)	?	0
2	175286	Chain	-	1	£32.20 (Exc VAT)	?	0
3	186184	Guide Shoe	-	2	£83.90 (Exc VAT)	?	0
4	175303	Bushing	-	2	£16.20 (Exc VAT)	?	0
5	10569373	Washer	-	2	£1.35 (Exc VAT)	?	0
6	14306424	Screw 8x25 M8X25	-	2	£1.65 (Exc VAT)		0
7	186185	Fixed Tension	-	2	£61.70 (Exc VAT)	?	0
8	14306224	Screw	-	4	£1.65 (Exc VAT)	?	0
9	186159	Guide shoe Support	-	1	£32.90 (Exc VAT)	?	0
10	231616	Maserati Screw Tcei Rond.M6x14 M6X14	-	2	£1.65 (Exc VAT)	?	0
11	306094	Fixed sliding block	-	1	£26.60 (Exc VAT)	?	0
12	11197774	Wavy Washer D.6.4-12X2.4	-	2	£1.60 (Exc VAT)		0
13	231619	Vite Vtcei Rond.M6x22 M6X22	-	2	£1.95 (Exc VAT)	?	0
14	193616	Timing Chain	-	2	£70.30 (Exc VAT)	?	0
15	222310	Upper Fixed Shoe	-	2	£42.80 (Exc VAT)	?	0
16	16043124	Screw	-	1	£1.35 (Exc VAT)	?	0
17	194262	Washer	-	1	£23.40 (Exc VAT)	?	0
18	175282	Bearing Roller Cage	-	3	£11.80 (Exc VAT)	?	0
19	175611	Dowel	-	2	£2.90 (Exc VAT)	?	0
20	212970	Supporto Rinvio Comando Dist	-	1	£1,100.00 (Exc VAT)	?	0
21	11181574	Washer D.5.3-11X0.9	-	4	£1.35 (Exc VAT)	?	0
22	14304224	Screw	-	4	£1.35 (Exc VAT)	?	0
23	230652	Tensioner	-	2	£64.90 (Exc VAT)		0
24	231619	Vite Vtcei Rond.M6x22 M6X22	-	4	£1.95 (Exc VAT)	?	0
25	190060	Bushing For Tensioner	-	1	£46.90 (Exc VAT)	?	0
26	247147	Maserati Gasket	-	1	£3.15 (Exc VAT)	?	0
27	193565	Timing Gear	-	1	£142.00 (Exc VAT)	?	0
28	196683	Tensioner- Chain	-	1	£31.10 (Exc VAT)	?	0
29	175306	Spallamento Su Fulcro Pattin	-	2	£4.50 (Exc VAT)	?	0
30	259031	Front Crankcase Cover Assembly	-	1	£9,430.00 (Exc VAT)	?	0
30	271243	Front Crankcase Cover Assembly	-	1	£1,190.00 (Exc VAT)	?	0
31	224314	Tappo M 12X1.25	-	3	£5.05 (Exc VAT)	?	0
32	10296160	Gasket	-	3	£0.90 (Exc VAT)	?	0
33	14324940	Plug- Threaded	-	1	£1.35 (Exc VAT)	?	0
34	322502	Front Cover Gasket	-	1	£30.20 (Exc VAT)	?	0
35	183010	Seal Ring	-	2	£2.90 (Exc VAT)	?	0
36	231617	Screw M6x18 M6X18 M 6X18	-	21	£1.95 (Exc VAT)	?	0
36	231622	Screw M6x35 M6X35 M 6X35	-	11	£0.90 (Exc VAT)	?	0
37	10589624	Vite Tcei M6x80 M 6X80	-	1	£47.60 (Exc VAT)	?	0
38	11197774	Wavy Washer D.6.4-12X2.4	-	1	£1.60 (Exc VAT)		0
39	190171	Spacer	-	1	£10.60 (Exc VAT)	?	0
40	192069	Seal Ring	-	1	£1.35 (Exc VAT)	?	0
