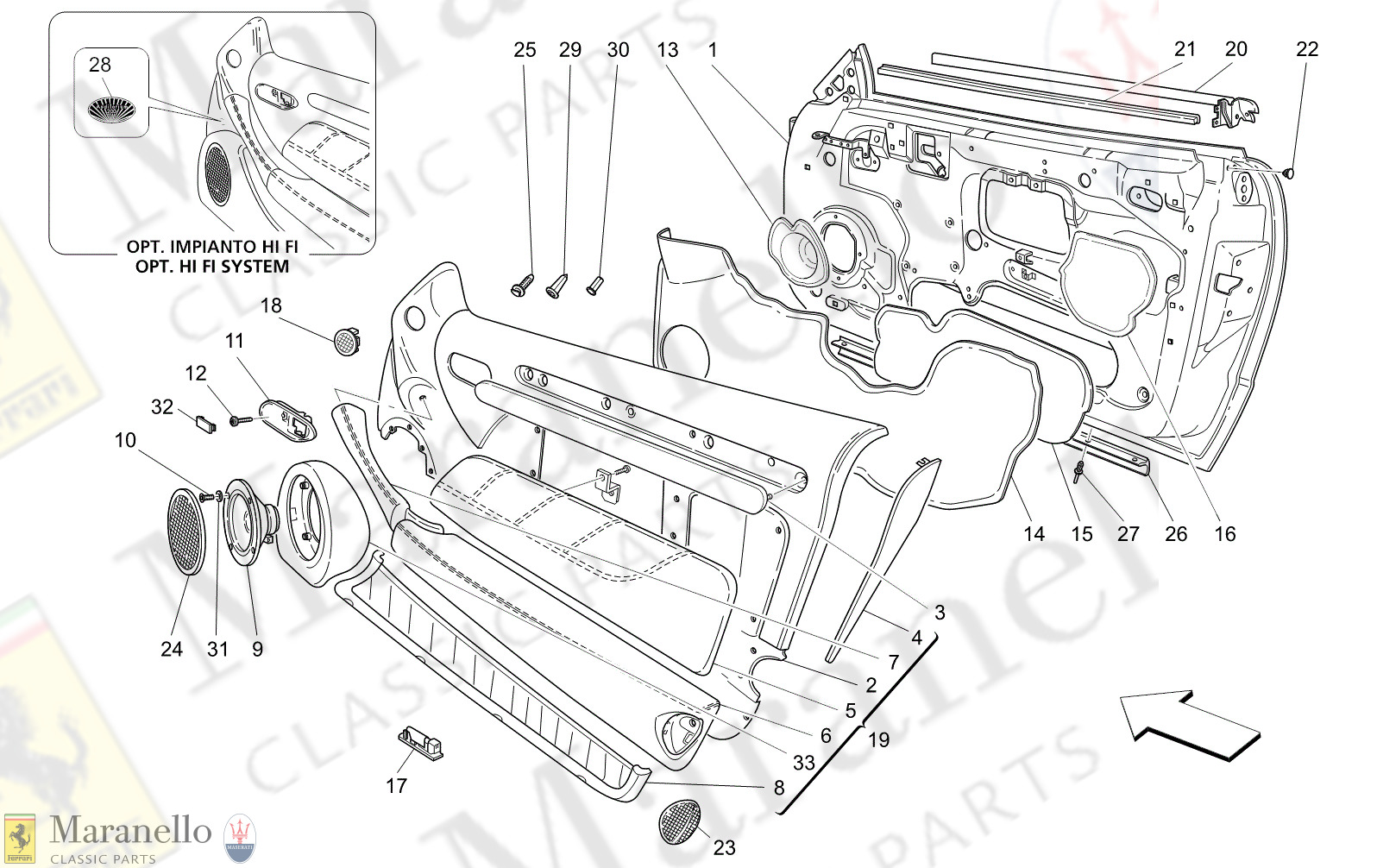

C9.30 - 11 - C930 - 11 Front Doors: Trim Panels

M1.00 - 11 - M100 - 11 Crankcase

M1.10 - 11 - M110 - 11 Crankshaft, Connecting Rods And Pistons

M1.20 - 11 - M120 - 11 Rh Cylinder Head

M1.21 - 11 - M121 - 11 Lh Cylinder Head

M1.22 - 11 - M122 - 11 Timing - Shafts And Valves

M1.24 - 11 - M124 - 11 Timing - Controls

M1.40 - 11 - M140 - 11 Intake Manifold And Throttle Body

M1.42 - 11 - M142 - 11 Fuel Tank

M1.43 - 11 - M143 - 11 Fuel Pumps And Connection Lines

M1.44 - 11 - M144 - 11 Antievaporation System

M1.44 - 21 - M144 - 21 Antievaporation System

M1.50 - 11 - M150 - 11 Additional Air System

M1.60 - 11 - M160 - 11 Lubrication System: Circuit And Collection

M1.61 - 11 - M161 - 11 Lubrication System: Pump And Filter

M1.63 - 11 - M163 - 11 Oil Vapour Recirculation System

M1.70 - 11 - M170 - 11 Cooling: Air Radiators And Ducts

M1.71 - 11 - M171 - 11 Cooling System: Nourice And Lines

M1.71 - 21 - M171 - 21 Cooling System: Nourice And Lines

M1.82 - 1 - M182 - 1 Exhaust System

M1.82 - 2 - M182 - 2 Exhaust System

M1.90 - 11 - M190 - 11 Injection - Ignition Device

M1.91 - 11 - M191 - 11 Alternator And Starting Motor

M2.11 - 11 - M211 - 11 Friction Discs And Housing For F1 Gearbox

M3.10 - 11 - M310 - 11 Gearbox Housings

M3.11 - 11 - M311 - 11 Main Shaft Gears

M3.12 - 11 - M312 - 11 Lay Shaft Gears

M3.13 - 11 - M313 - 11 Inner Controls

M3.21 - 11 - M321 - 11 Differential And Rear Axle Shafts

M3.22 - 11 - M322 - 11 Differential Box And Rear Underbody

M3.30 - 11 - M330 - 11 Transmission Shaft

M3.40 - 11 - M340 - 11 F1 Clutch Hydraulic Control

M3.41 - 11 - M341 - 11 Power Unit And Tank

M4.00 - 11 - M400 - 11 Brakes And Clutch Hydraulic Controls

M4.12 - 11 - M412 - 11 Braking Devices On Wheels

M4.20 - 11 - M420 - 11 Braking System

M4.20 - 21 - M420 - 21 Braking System

M4.30 - 11 - M430 - 11 Parking Brake

M5.00 - 11 - M500 - 11 Steering Column And Steering Wheel Unit

M5.10 - 11 - M510 - 11 Steering Rack And Hydraulic Steering Pump

M5.20 - 11 - M520 - 11 Complete Pedal Board Unit

M5.20 - 21 - M520 - 21 Complete Pedal Board Unit

M6.00 - 11 - M600 - 11 Wheels And Tyres

M6.10 - 11 - M610 - 11 Front Suspension

M6.11 - 11 - M611 - 11 Front Shock Absorber Devices

M6.12 - 11 - M612 - 11 Front Underchassis

M6.20 - 11 - M620 - 11 Rear Suspension

M6.21 - 11 - M621 - 11 Rear Shock Absorber Devices

M7.30 - 11 - M730 - 11 Accessories Provided

M7.30 - 21 - M730 - 21 Accessories Provided

M8.20 - 11 - M820 - 11 Battery

C7.00 - 11 - C700 - 11 Airbag System

C8.00 - 11 - C800 - 11 Windscreen Wiper, Windscreen Washer And Horns

C8.33 - 11 - C833 - 11 Light Clusters

C8.33 - 21 - C833 - 21 Light Clusters

C8.40 - 11 - C840 - 11 A/C Unit: Engine Compartment Devices

C8.41 - 11 - C841 - 11 A/C Unit: Dashboard Devices

C8.50 - 11 - C850 - 11 Passenger Compartment Devices

C8.50 - 21 - C850 - 21 Passenger Compartment Devices

C8.53 - 11 - C853 - 11 Alarm And Immobilizer System

C8.53 - 21 - C853 - 21 Alarm And Immobilizer System

C8.53 - 31 - C853 - 31 Alarm And Immobilizer System

C8.60 - 11 - C860 - 11 Main Wiring

C8.71 - 11 - C871 - 11 It System

C8.71 - 21 - C871 - 21 It System

C8.73 - 11 - C873 - 11 Engine Compartment Control Units

C8.74 - 11 - C874 - 11 Passenger Compartment Control Units

C8.74 - 21 - C874 - 21 Passenger Compartment Control Units

C8.75 - 11 - C875 - 11 Trunk Compartment Control Units

C8.75 - 21 - C875 - 21 Trunk Compartment Control Units

C9.00 - 11 - C900 - 11 Bodywork And Front Outer Trim Panels

C9.01 - 11 - C901 - 11 Bodywork And Central Outer Trim Panels

C9.02 - 11 - C902 - 11 Bodywork And Rear Outer Trim Panels

C9.03 - 11 - C903 - 11 Front Structural Frames And Sheet Panels

C9.04 - 11 - C904 - 11 Central Structural Frames And Sheet Panels

C9.05 - 11 - C905 - 11 Rear Structural Frames And Sheet Panels

C9.10 - 11 - C910 - 11 Front Bumper

C9.11 - 11 - C911 - 11 Rear Bumper

C9.13 - 11 - C913 - 11 Wheelhouse And Lids

C9.15 - 11 - C915 - 11 Shields, Trims And Covering Panels

C9.17 - 11 - C917 - 11 Stickers And Labels

C9.20 - 11 - C920 - 11 Front Lid

C9.21 - 11 - C921 - 11 Rear Lid

C9.30 - 11 - C930 - 11 Front Doors: Trim Panels

C9.31 - 11 - C931 - 11 Front Doors: Mechanisms

C9.34 - 11 - C934 - 11 Windows And Window Strips

C9.35 - 11 - C935 - 11 Glass Lift And External Rear-View Mirrors

C9.40 - 11 - C940 - 11 Front Seats: Trim Panels

C9.41 - 11 - C941 - 11 Front Seats: Mechanics And Electronics

C9.42 - 11 - C942 - 11 Rear Seats: Trim Panels

C9.44 - 11 - C944 - 11 Inner Trims

C9.44 - 21 - C944 - 21 Inner Trims

C9.45 - 11 - C945 - 11 Roof Panel Upholstery And Accessories

C9.46 - 11 - C946 - 11 Rear Parcel Shelf

C9.50 - 11 - C950 - 11 Dashboard Unit

C9.50 - 21 - C950 - 21 Dashboard Unit

C9.51 - 11 - C951 - 11 Accessory Console And Centre Console

C9.52 - 11 - C952 - 11 Glove Compartments

C9.60 - 11 - C960 - 11 Passenger Compartment Mats

C9.61 - 11 - C961 - 11 Trunk Hood Compartment Trims

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	980001037	LH Complete Door without hinge	-	1	£3,900.00 (Exc VAT)	?	0
1	980001038	RH Complete Door without hinge	-	1	£3,900.00 (Exc VAT)	?	0
2	672327..	L.H. DOOR PANEL UPHOLSTERED For order specify car number	-	1	POA		0
2	672462..	R.H. DOOR PANEL UPHOLSTERED For order specify car number	-	1	POA		0
3	67247328	LH Door Moulding Std Standard	-	1	£87.80 (Exc VAT)	?	0
3	67027700	LH Door Moulding Carbon Optional- -Carbon	-	1	POA (Exc VAT)	?	0
3	67247028	RH Door Moulding aluminum Standard	-	1	POA (Exc VAT)	?	0
3	67027600	RH Door Moulding Carbon Optional- -Carbon	-	1	POA (Exc VAT)	?	0
4	663684..	L.H. UPHOLSTERED TERMINAL PLUG For order specify car number	-	1	POA		0
4	663683..	R.H. UPHOLSTERED TERMINAL PLUG For order specify car number	-	1	POA		0
5	672886..	L.H. DOOR SIDE- BAG COVER For order specify car number	-	1	POA		0
5	672885..	R.H. DOOR SIDE- BAG COVER For order specify car number	-	1	POA		0
6	672399..	L.H. ARM-REST For order specify car number	-	1	POA		0
6	672465..	R.H. ARM-REST For order specify car number	-	1	POA		0
7	684130..	L.H. HANDLE MOULDING Texture lining- -For order specify car number	-	1	POA		0
7	672329..	L.H. UPHOLSTERED HANDLE MOULDING Leather lining- -For order specify car number	-	1	POA		0
7	684129..	R.H. HANDLE MOULDING Texture lining- -For order specify car number	-	1	POA		0
7	672464..	R.H. UPHOLSTERED HANDLE MOULDING Leather lining- -For order specify car number	-	1	POA		0
8	98404....	COMPLETE L.H. POCKET Leather lining- -For order specify car number	-	1	POA		0
8	98257....	COMPLETE L.H. POCKET Leather/Texture lining- -For order specify car number	-	1	POA		0
8	98403....	COMPLETE R.H. POCKET Leather lining- -For order specify car number	-	1	POA		0
8	98256....	COMPLETE R.H. POCKET Leather/Texture lining- -For order specify car number	-	1	POA		0
9	189389	Speaker std Standard	-	2	POA (Exc VAT)	?	0
9	189390	Speaker opt Optional- -HI FI system	-	2	POA (Exc VAT)	?	0
10	13274014	Screw	-	8	£13.80 (Exc VAT)	?	0
11	67393729	LH Handle Plate Black	-	1	POA (Exc VAT)	?	0
11	67393629	RH Handle Plate Black	-	1	POA (Exc VAT)	?	0
12	15689907	Screw	-	2	£1.30 (Exc VAT)	?	0
13	66661100	LH Water Shield for Loud Speaker	-	1	POA (Exc VAT)	?	0
13	66661200	RH Water Shield for Loud Speaker	-	1	POA (Exc VAT)	?	0
14	66420200	LH Water Shield in the Door	-	1	POA (Exc VAT)	?	0
14	66420100	RH Water Shield in the Door	-	1	£20.60 (Exc VAT)	?	0
15	66661300	LH Lower Central Shield for Water	-	1	POA (Exc VAT)	?	0
15	66661400	RH Lower Central Shield for Water	-	1	POA (Exc VAT)	?	0
16	66661500	LH Upper Lateral Shield for Water	-	1	POA (Exc VAT)	?	0
16	66661600	RH Upper Lateral Water For Shield	-	1	POA (Exc VAT)	?	0
17	60608165	Domelight	-	2	£7.45 (Exc VAT)	?	0
18	185969	Speaker STD Standard	-	2	£37.50 (Exc VAT)	?	0
18	185970	Speaker OPT Optional- -HI FI system	-	2	POA (Exc VAT)	?	0
19	98402....	COMPLETE L.H. DOOR PANEL UPHOLSTERED Leather lining- -For order specify car number	-	1	POA		0
19	98255....	COMPLETE L.H. DOOR PANEL UPHOLSTERED Leather/Texture lining- -For order specify car number	-	1	POA		0
19	98401....	COMPLETE R.H. DOOR PANEL UPHOLSTERED Leather lining- -For order specify car number	-	1	POA		0
19	98254....	COMPLETE R.H. DOOR PANEL UPHOLSTERED Leather/Texture lining- -For order specify car number	-	1	POA		0
20	67820300	LH Outer Glass Scraper Gasket	-	1	£302.00 (Exc VAT)	?	0
20	67820200	RH Outer Glass Scraper Gasket	-	1	£302.00 (Exc VAT)	?	0
21	67669800	RH Inner Glass Scraper Gasket	-	2	£22.80 (Exc VAT)	?	0
22	388300805	Button	-	2	£1.05 (Exc VAT)	?	0
23	46427292	LH Door Reflector Lenses	-	1	£9.40 (Exc VAT)	?	0
23	46427291	RH Door Reflector Lenses	-	1	£9.40 (Exc VAT)	?	0
24	388300600	Front Door Speaker Grille	-	2	£6.15 (Exc VAT)	?	0
25	66805100	Pin	-	6	£0.85 (Exc VAT)	?	0
26	384500441	Underdoor Gasket	-	2	£31.30 (Exc VAT)	?	0
27	384500442	Rivet	-	18	£1.30 (Exc VAT)	?	0
28	388300398	Plate Optional- -HI FI system	-	2	POA (Exc VAT)	?	0
29	7745194	Door Trim Clip Insert	-	6	£1.30 (Exc VAT)	?	0
	Alternative 67302800	Door Trim Clip Insert	N	6	£0.23 (Exc VAT)		0
30	15180311	Rivet	-	26	£2.25 (Exc VAT)	?	0
31	12620374	Washer	-	8	£1.05 (Exc VAT)	?	0
32	388300603	Plug Black	-	2	POA (Exc VAT)	?	0
33	683721..	INSERT FOR L.H. LOUD-SPEAKER	-	1	POA		0
33	683720..	INSERT FOR R.H. LOUD-SPEAKER	-	1	POA		0
