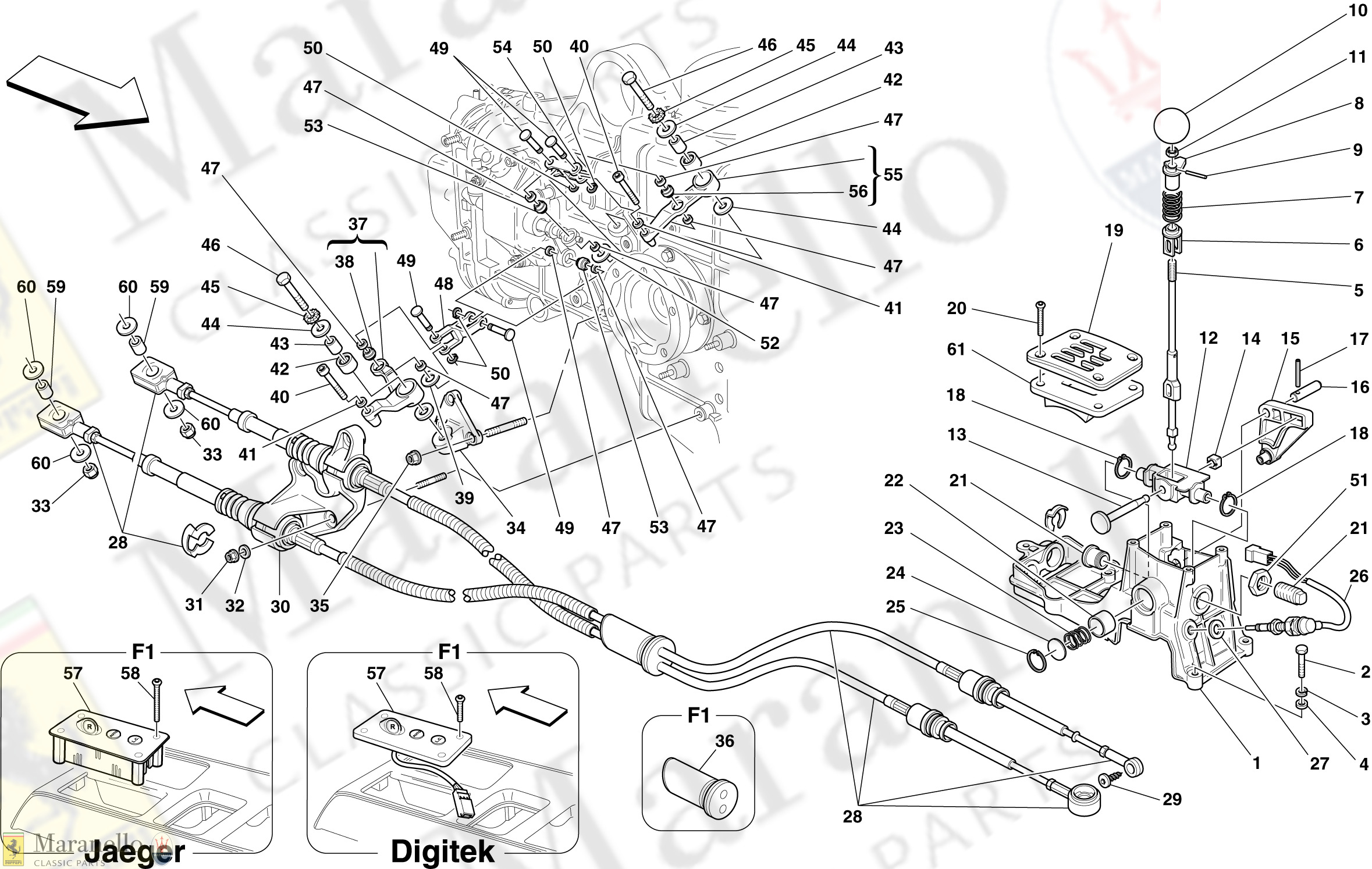

Ferrari / F430 Spider / 033 - External Gearbox Controls

Reset

< Prev Next >

000 - Spare Assembly Units

001 - Crankcase

002 - Crankshaft - Connecting Rods And Pistons

003 - Right Hand Cylinder Head

004 - Left Hand Cylinder Head

005 - Timing System - Tappets

006 - Timing System - Drive

007 - Injection - Ignition System

008 - Pneumatic Actuator System

009 - Fuel System Pumps And Pipes

010 - Fuel Tanks And Filler Neck

011 - Fuel Tanks - Fasteners And Guards

012 - Evaporative Emissions Control System

013 - Intake Manifold

014 - Air Intake

015 - Intake Manifold Cover

016 - Electronic Accelerator Pedal

017 - Racing Exhaust System

018 - Lubrication System - Tank - Heat Exchanger

019 - Oil / Water Pump

020 - Header Tank

021 - Cooling System

022 - Cooling System Radiators

023 - Clutch And Controls -Not For F1-

024 - Clutch And Controls -Applicable For F1-

025 - Pedal Board

026 - Pedal Board -Applicable For Gd-

027 - F1 Gearbox And Clutch Hydraulic Control -Applicable For F1-

028 - Power Unit And Tank

029 - Gearbox - Covers

030 - Primary Shaft Gears

031 - Secondary Shaft Gears

032 - Internal Gearbox Controls

033 - External Gearbox Controls

034 - Differential And Axle Shaft

035 - Hydraulic Brake And Clutch Controls

036 - Power Steering System

037 - Brake System -Not Applicable For Gd-

038 - Brake System -Applicable For Gd-

039 - Front And Rear Brake Callipers

040 - Parking Brake Control

041 - Hydraulic Power Steering Box And Serpentine Coil

042 - Steering Control

043 - Power Steering Pump And Reservoir

044 - Front Suspension - Shock Absorber And Brake Disc

045 - Front Suspension - Arms

046 - Rear Suspension - Shock Absorber And Brake Disc

047 - Rear Suspension - Arms

048 - Wheels

049 - Tyre Pressure Monitoring System

050 - Battery

051 - Alternator - Starter Motor

052 - Ac System Compressor

053 - Tools And Accessories Provided With Vehicle

054 - Documentation And Accessories

055 - Spare Wheel And Tools -Optional-

100 - Bodyshell - External Trim

101 - Chassis - Complete Front Structure And Panels

102 - Chassis - Structure, Front Elements And Panels

103 - Central Elements And Panels

104 - Chassis - Structure, Rear Elements And Panels

105 - Chassis - Rear Element Subassemblies

106 - Flat Undertray And Wheelhouses

107 - Insulation

108 - Passenger Compartment Mats

109 - Front Compartment Trim

110 - Headliner Trim And Accessories

111 - Roof Canvas - Seals - Mouldings

112 - Roof Trim And Tub

113 - Roof Linkages And Mechanism

114 - Front Roof Latch

115 - Roof Kinematics - Upper Part

116 - Roof Kinematics - Lower Part

117 - Roof Control And Flaps

118 - Roof Microswitches And Ecu

119 - Hydraulic System And Electrohydraulic Pump Unit

120 - Front Lid And Opening Mechanism

121 - Engine Compartment Lid

122 - Engine Compartment Lid And Fuel Filler Flap Opening Mechanisms

123 - Doors - Substructure And Trim

124 - Doors - Opening Mechanism And Hinges

125 - Doors - Power Windows And Rear-View Mirror

126 - Front Bumper

127 - Rear Bumper

128 - Screens, Windows And Seals

129 - Manual Front Seat - Seat Belts

130 - Electric Seat - Seat Belts -Optional

131 - Electric Seat - Guides And Adjustment Mechanisms -Optional-

132 - Racing Seat- Optional -Sparco-

133 - Racing Seat- Optional -Sabelt-

134 - Tunnel - Substructure And Accessories

135 - Rear Oddment Storage Compartment

136 - Dashboard

137 - Glove Compartment

138 - Airbags

139 - Dashboard And Tunnel Instruments

140 - Headlights And Taillights

141 - Shields - External Trim

142 - Windscreen Wiper, Windscreen Washer And Horns

143 - Electrical System

144 - Front Passenger Compartment Ecus

145 - Ecus And Sensors In Front Compartment And Engine Compartment

146 - Rear Passenger Compartment Ecus

147 - Antitheft System Ecus And Devices

148 - Evaporator Unit

149 - Ac System

150 - Hi-Fi System

151 - Radio Amplifier System

152 - High Power Bose Hi Fi System

153 - Immobiliser Kit

154 - Adhesive Labels And Plaques

155 - Painting -Applicable Only For S.T. Schedule-

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	181751	Gearbox Control Not for F1 gearbox	-	1	POA (Exc VAT)	?	0
2	16044024	Screw TE M8 x 40 Not for F1 gearbox	-	4	£0.30 (Exc VAT)		0
3	12601374	Wavy Washer 8mm Not for F1 gearbox	-	4	£0.02 (Exc VAT)		0
4	14496524	Washer Not for F1 gearbox	-	4	£0.09 (Exc VAT)		0
5	180936	Gear Lever Not for F1 gearbox	-	1	£394.45 (Exc VAT)	?	0
6	174967	Bush Not for F1 gearbox	-	1	£144.57 (Exc VAT)	?	0
7	159137	Spring Not for F1 gearbox	-	1	£74.71 (Exc VAT)		0
8	199070	Bush Gear Lever Not for F1 gearbox	-	1	£56.92 (Exc VAT)	?	0
9	13896070	Pin Gear Lever Not for F1 gearbox	-	1	£5.48 (Exc VAT)	?	0
10	160480	Gear Lever Knob Standard version- -Not for F1 gearbox	-	1	£179.37 (Exc VAT)		0
10	223130	Gear Lever Knob Carbon version- -Not for F1 gearbox	-	1	£535.08 (Exc VAT)	?	0
11	108010	Retaining Nut Not for F1 gearbox	-	1	£20.50 (Exc VAT)		0
12	176626	Fulcrum Gear Lever Not for F1 gearbox	-	1	£335.82 (Exc VAT)		0
13	176425	Pin Not for F1 gearbox	-	1	£189.74 (Exc VAT)	?	0
14	172934	Small Block Not for F1 gearbox	-	1	£35.36 (Exc VAT)		0
15	176642	Lever Not for F1 gearbox	-	1	£88.41 (Exc VAT)	?	0
16	176419	Pin Not for F1 gearbox	-	1	£39.50 (Exc VAT)	?	0
17	14160570	Pin Not for F1 gearbox	-	1	POA (Exc VAT)	?	0
18	172918	Circlip Safety Ring Not for F1 gearbox	-	2	£5.46 (Exc VAT)	?	0
19	179844	Selector Gate Standard version- -Not for F1 gearbox	-	1	£2,244.92 (Exc VAT)	?	0
19	220439	Selector Gate For trim version with carbon knob- -Not for F1 gearbox	-	1	POA (Exc VAT)	?	0
20	159357	Screw M5 x 30 TSCEC Not for F1 gearbox	-	4	£3.78 (Exc VAT)		0
21	181752	Rear Bushing Not for F1 gearbox	-	1	POA (Exc VAT)	?	0
21	181753	Front Bushing Not for F1 gearbox	-	1	£53.06 (Exc VAT)	?	0
22	177029	Pin Not for F1 gearbox	-	1	£39.45 (Exc VAT)	?	0
23	177027	Side Spring Not for F1 gearbox	-	1	£38.88 (Exc VAT)	?	0
24	177028	Retaining Disc Not for F1 gearbox	-	1	£2.82 (Exc VAT)	?	0
25	11058976	Circlip Not for F1 gearbox	-	1	£7.55 (Exc VAT)		0
26	115980	Reverse Light Switch Not for F1 gearbox	MP -	1	£271.16 (Exc VAT)	?	0
	Alternative 115980/A	Rev Light Switch	N	1	£114.52 (Exc VAT)		0
27	12601574	Wavy Washer 13mm Not for F1 gearbox	-	1	£0.06 (Exc VAT)		0
28	180701	Gear Change Cable Not for F1 gearbox	-	1	£1,021.73 (Exc VAT)	?	0
29	14567187	Button Gear Ghange Cables Not for F1 gearbox	-	1	£0.14 (Exc VAT)		0
30	177812	Cable Bracket Not for F1 gearbox	-	1	POA (Exc VAT)	?	0
31	194031	Flanged Nut M6 x 20 Not for F1 gearbox	-	3	£0.55 (Exc VAT)		0
32	14496424	Washer Not for F1 gearbox	-	3	POA (Exc VAT)	?	0
	Superseded by 10519424	Washer 1.6mm 6.40x11.95x1.6	N	3	£0.02 (Exc VAT)		0
33	14048115	Nut Not for F1 gearbox	-	2	POA (Exc VAT)	?	0
	Superseded by 14048111	Nut	N	2	£0.09 (Exc VAT)		0
34	202619	Support Not for F1 gearbox	-	1	£82.67 (Exc VAT)	?	0
35	14059911	Flanged Nut Not for F1 gearbox	-	3	POA (Exc VAT)	?	0
36	180127	Pad For Hole Applicable for F1 gearbox	-	1	£31.66 (Exc VAT)	?	0
37	186369	Selector Lever Not for F1 gearbox- -No longer supplied- -Replaced by 178840	-	1	POA (Exc VAT)	?	0
37	178840	Selector Lever Not for F1 gearbox	-	1	£198.59 (Exc VAT)	?	0
38	109407	Spherical Joint D.8-16X5 Not for F1 gearbox	-	1	£38.58 (Exc VAT)	?	0
39	178423	Spacer Not for F1 gearbox	-	1	£1.64 (Exc VAT)		0
40	14305624	Allen Screw M6 x 35 TCEI Not for F1 gearbox	-	2	£0.13 (Exc VAT)		0
41	14499324	Washer Not for F1 gearbox	-	2	£0.03 (Exc VAT)	?	0
	Superseded by 12643724	Washer 6.15-18x1.5	N	2	£0.05 (Exc VAT)		0
42	171677	Roller Bearing Not for F1 gearbox	-	2	£10.63 (Exc VAT)	?	0
43	174984	Bush Gear Linkage Not for F1 gearbox	-	2	£23.99 (Exc VAT)	?	0
44	171671	Spacer Not for F1 gearbox	-	4	£3.21 (Exc VAT)		0
45	10615674	Washer Not for F1 gearbox- -No longer supplied- -Replaced by 12601374	-	2	POA (Exc VAT)	?	0
	Superseded by 12601374	Wavy Washer 8mm	N	2	£0.02 (Exc VAT)		0
45	12601374	Wavy Washer 8mm Not for F1 gearbox	-	2	£0.02 (Exc VAT)		0
46	16044024	Screw TE M8 x 40 Not for F1 gearbox	-	2	£0.30 (Exc VAT)		0
47	171673	Spacer Gear Linkage Not for F1 gearbox	-	8	£17.67 (Exc VAT)		0
48	174911	Fork Not for F1 gearbox	-	1	£87.94 (Exc VAT)	?	0
49	174974	Pin Gear Linkage Not for F1 gearbox	-	4	£30.29 (Exc VAT)		0
50	11065674	Circlip Not for F1 gearbox	-	4	£0.04 (Exc VAT)		0
51	182391	Nut Not for F1 gearbox	-	1	£11.32 (Exc VAT)	?	0
52	178423	Spacer Not for F1 gearbox	-	1	£1.64 (Exc VAT)		0
53	109407	Spherical Joint D.8-16X5 Not for F1 gearbox	-	2	£38.58 (Exc VAT)	?	0
54	174912	Fork Not for F1 gearbox	-	1	£88.71 (Exc VAT)	?	0
55	186371	Lever Not for F1 gearbox- -No longer supplied- -Replaced by 178932	-	1	POA (Exc VAT)	?	0
55	178932	Lever Not for F1 gearbox	-	1	POA (Exc VAT)	?	0
56	109407	Spherical Joint D.8-16X5 Not for F1 gearbox	-	1	£38.58 (Exc VAT)	?	0
57	206085	F1 Gearbox Control Panel LHD Jaeger- -Not for USA, CDN, GD- -Applicable up to Ass. No. 66453- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 69928100	-	1	POA (Exc VAT)	?	0
57	69928100	F1 Gearbox Control Panel LHD Digitek- -Replaces Jaeger panel- -Not for USA, CDN, GD- -Applicable from Ass. No. 66454- -Applicable for F1 gearbox- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
57	81699200	F1 Gearbox Control Unit Digitek- -Not for USA, CDN, GD- -Applicable for F1 gearbox- -Applicable after depletion of 69928100	-	1	POA (Exc VAT)	?	0
57	209384	F1 Control Panel Jaeger- -Applicable for USA, CDN- -Applicable up to Ass. No. 66453- -Applicable for F1 gearbox- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
57	69934800	F1 Control Panel Digitek- -Replaces Jaeger panel- -Applicable for USA, CDN- -Applicable from Ass. No. 66454- -Applicable for F1 gearbox- -Applicable after depletion of 209384- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
57	81699600	F1 Control Panel see Tec 1583 Digitek- -Applicable for USA, CDN- -Applicable from Ass. No. 66454- -Applicable for F1 gearbox- -Applicable after depletion of 69934800	-	1	POA (Exc VAT)	?	0
57	209161	F1 Control Panel RHD Jaeger- -Applicable for GD- -Applicable up to Ass. No. 66453- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 69939300	-	1	POA (Exc VAT)	?	0
	Superseded by 81699300	F1 Control Panel RHD	N	1	£1,972.26 (Exc VAT)		0
57	69939300	F1 Control Panel RHD Digitek- -Replaces Jaeger panel- -Applicable for GD- -Applicable from Ass. No. 66454- -Applicable for F1 gearbox- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
	Superseded by 81699300	F1 Control Panel RHD	N	1	£1,972.26 (Exc VAT)		0
57	81699300	F1 Control Panel RHD Digitek- -Applicable for GD- -Applicable for F1 gearbox- -Applicable after depletion of 69939300	-	1	£1,972.26 (Exc VAT)		0
58	65404500	Screw Applicable for F1 gearbox- -No longer supplied- -Replaced by 68123900	-	4	£0.81 (Exc VAT)		0
58	68123900	Screw Applicable for Jaeger panel ref. 57- -Applicable for F1 gearbox	-	4	POA (Exc VAT)	?	0
58	69928200	Screw 5x22 Applicable for Digitek panel, ref. 57- -Applicable for F1 gearbox- -Applicable until depletion	-	4	POA (Exc VAT)	?	0
58	209152	Gear Lever Gate Screw Applicable for Digitek panel, ref. 57- -Applicable for F1 gearbox- -Applicable after depletion of 69928200	-	4	£7.27 (Exc VAT)	?	0
59	182237	Bush Gear Change Cable Not for F1 gearbox	-	2	£35.48 (Exc VAT)		0
60	12643724	Washer 6.15-18x1.5 Not for F1 gearbox	-	4	£0.05 (Exc VAT)		0
61	219570	Spacer Not for F1 gearbox	-	1	£102.53 (Exc VAT)	?	0
