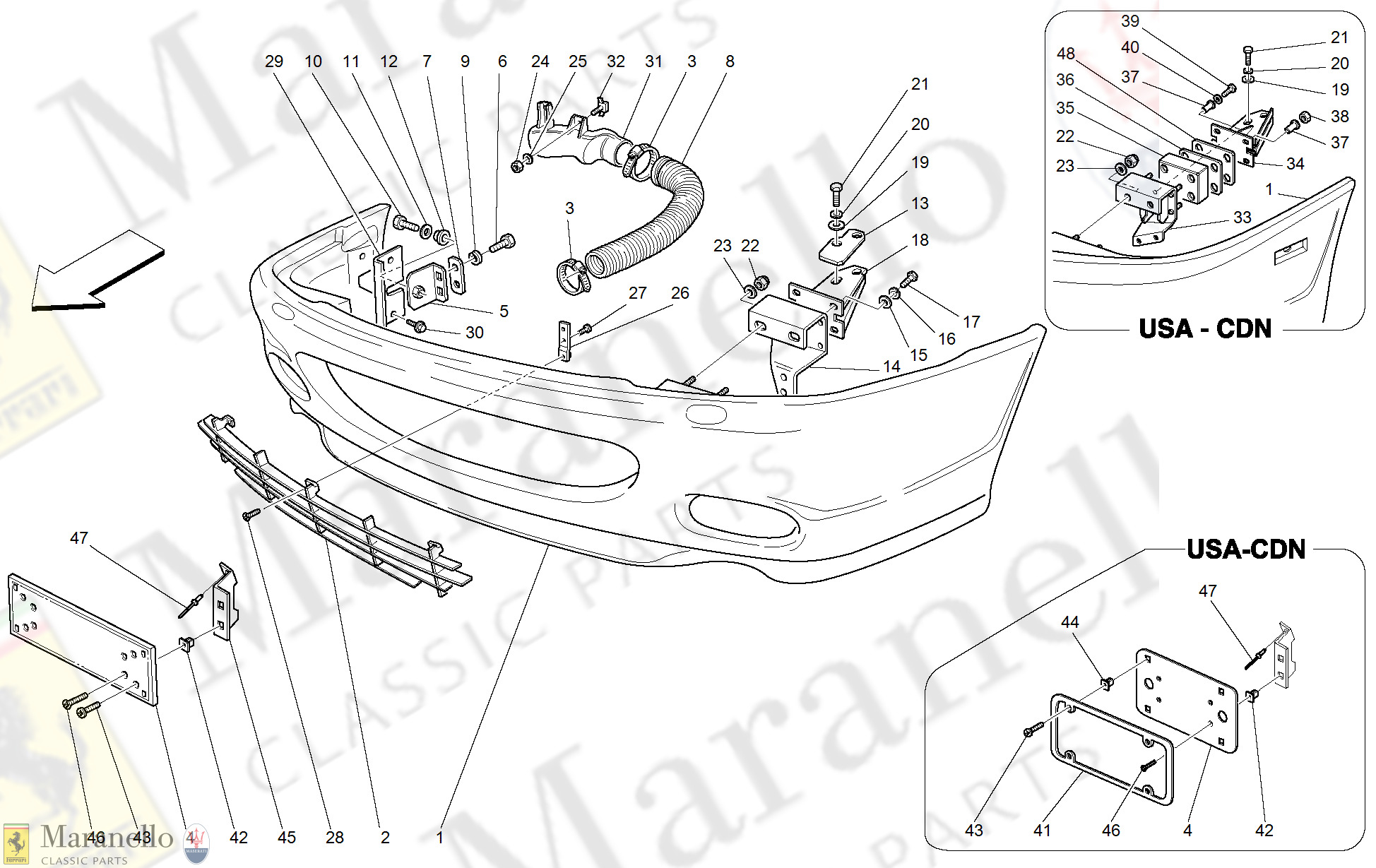

Ferrari / 575M Maranello / 106 - Front Bumper

Reset

< Prev Next >

001 - Crankcase

002 - Crankcase - Covers

003 - Driving Shaft - Connecting Rods And Pistons

004 - R.H. Cylinder Head

005 - L.H. Cylinder Head

006 - Timing - Controls

007 - Timing - Valves

008 - Engine Covers

009 - Fuel Supply System

010 - Fuel Pump

011 - Fuel Tank - Union And Piping -Not For Usa And Cdn-

012 - Fuel Tank - Union And Piping -Valid For Usa And Cdn-

013 - Fuel Tank -Insulation And Protection

014 - Antievaporation Device

015 - Injection - Ignition Device

016 - Pneumatics Actuator System

017 - Secondary Air Pump

018 - Air Intake Manifolds

019 - Air Intake

020 - Front Exhaust System

021 - Rear Exhaust System

022 - Blow-By

023 - Lubrication System - Tank

024 - Lubrication - Oil Pumps

025 - Lubrication - Oil Sumps And Filters

026 - Cooling System - Radiator And Nourice

027 - Water Pump

028 - Clutch And Controls -Not For F1-

029 - Clutch And Controls -Valid For F1-

030 - Gearbox

031 - Differential Carrier And Clutch Cooling Radiator

032 - Main Shaft Gears And Clutch Oil Pump

033 - Lay Shaft Gears

034 - Inside Gearbox Controls -Not For F1-

035 - Inside Gearbox Controls -Valid For F1-

036 - Outside Gearbox Controls

037 - Engine/Gearbox Connecting Tube And Insulation

038 - Differential And Axle Shaft

039 - Brake And Clutch Hydraulic System

040 - Electronic Accelerator Pedal

041 - Pedals

042 - F1 Clutch Hydraulic Control -Valid For F1-

043 - Power Unit And Tank -Valid For F1-

044 - Brake System -Not For Gd-

045 - Brake System -Valid For Gd-

046 - Caliper For Front Brake

047 - Caliper For Rear Brake

048 - Hand-Brake Control

049 - Hydraulic Steering Box

050 - Oil Tank For Servosteering And Serpentine

051 - Steering Column

052 - Hydraulic Steering Pumps

053 - Front Suspension - Shock Absorber And Brake Disc

054 - Front Suspension - Wishbones And Stabilizer Bar

055 - Rear Suspension - Shock Absorber And Brake Disc

056 - Rear Suspension - Wishbones And Stabilizer Bar

057 - Wheels

058 - Tyres Pressure Control System -Not For J-

059 - Battery

060 - Alternator - Starting Motor - Air Conditioning Compressor

061 - Air Conditioning System

062 - Evaporator Unit And Controls

063 - Tools Equipment And Fixings

064 - Documentation And Accessories

065 - Spare Wheel And Accessories

100 - Body - Outer Trims

101 - Frame And Structures

102 - Front Structures And Components

103 - Rear Structures And Components

108 - Engine Compartment Fire-Proof Insulations -Not For Gd-

109 - Engine Compartment Fire-Proof Insulations -Valid For Gd-

110 - Passengers Compartment Insulations -Not For Gd-

111 - Passengers Compartment Insulations -Valid For Gd-

112 - Boot Insulation

113 - Passengers Compartment Upholstery And Carpets

114 - Roof Panel Upholstery And Accessories

115 - Boot Upholstery

116 - Engine Bonnet

117 - Boot Door And Petrol Cover

118 - Doors - Frameworks And Coverings

119 - Doors - Opening Control And Hinges

120 - Doors - Power Window And Rearview Mirror

121 - Glasses And Gaskets

122 - Electrical Seat - Safety Belts

123 - Electrical Seat - Guide And Movement

124 - Sport Seat-4 Point Belts-Roll Bar

125 - Tunnel - Framework And Accessories

126 - Inner Trims

127 - Instruments Panel

128 - Dashboard Drawer

129 - Air-Bag

130 - Instruments

131 - Front And Rear Lights

132 - Outside Finishings

133 - Electrical System

134 - Front Passengers Compartment Control Stations

135 - Acceleration Sensors

136 - Motor Compartments Control Stations

137 - Rear Passengers Compartment Control Stations

138 - Anti-Theft Electrical Boards And Devices

139 - Stereo Equipment - Gps

140 - Windscreen Wiper, Windscreen Washer And Horns

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	66082010	Front Bumper Complete Not for USA and CDN	-	1	POA (Exc VAT)	?	0
1	66407510	Front Bumper Complete Valid for USA	-	1	£5,654.32 (Exc VAT)	?	0
1	66615210	Front Bumper Complete Valid for CDN	-	1	£6,094.27 (Exc VAT)	?	0
2	66084100	Standard Front Rad Grille	-	1	£834.59 (Exc VAT)	?	0
2	67128200	Front Grille Optional- -Not as spare part now- -Replaced by 67944700	-	1	POA (Exc VAT)	?	0
	Superseded by 67944700	Front Grille	N	1	£2,530.36 (Exc VAT)		0
2	67944700	Front Grille Optional	-	1	£2,530.36 (Exc VAT)		0
3	13001090	Hose Clip 70-90Mm	-	4	£1.18 (Exc VAT)		0
4	63736400	Front Plate Frame Not for USA,CDN,AUS,GB,J,CH and D	-	1	£42.81 (Exc VAT)	?	0
4	65271400	Front Plate Frame Valid for USA and CDN	-	1	£23.59 (Exc VAT)		0
4	65271000	Front Plate Frame Valid for AUS	-	1	POA (Exc VAT)	?	0
4	65272100	Front Plate Frame Valid for J	-	1	POA (Exc VAT)	?	0
4	63736300	Front Plate Frame Valid for GB and D	-	1	£44.86 (Exc VAT)		0
4	65272400	Front Plate Frame Valid for CH	-	1	POA (Exc VAT)	?	0
5	65238400	RH Bumper Bracket	-	1	£45.10 (Exc VAT)		0
5	65239000	LH Bumper Bracket	-	1	£45.10 (Exc VAT)		0
6	10902624	Screw TE M6 x 25	-	4	£0.11 (Exc VAT)		0
7	12640624	Plain Washer 6mm Not as spare part- -Replaced by 67123200	-	4	£0.12 (Exc VAT)		0
7	67123200	Bumper Spacer	-	2	£2.06 (Exc VAT)	?	0
8	174155	Air Duct Pipe	-	2	£118.04 (Exc VAT)		0
9	127494	Wavy Washer 6mm Zinc Coated	-	4	£0.07 (Exc VAT)		0
10	65228800	Bumper Bolt	-	2	£4.97 (Exc VAT)	?	0
11	65406400	Spacer	-	2	£0.39 (Exc VAT)	?	0
12	65228700	Bushing	-	2	£4.24 (Exc VAT)	?	0
13	63215400	Spacer Not for USA and CDN	-	8	£1.64 (Exc VAT)		0
14	66171800	LH Inner Bracket Not for USA and CDN	-	1	£119.37 (Exc VAT)	?	0
14	66171700	RH Inner Bracket Not for USA and CDN	-	1	£119.37 (Exc VAT)	?	0
15	12646821	Washer D.10 20-25x2 Not for USA and CDN	-	8	£0.09 (Exc VAT)		0
16	127497	Spring Washer 10mm Not for USA and CDN	-	8	£0.05 (Exc VAT)		0
17	11227921	Screw Not for USA and CDN	-	8	£0.34 (Exc VAT)	?	0
18	65033100	LH Bumper Support Not for USA and CDN	-	1	£149.16 (Exc VAT)	?	0
18	65033000	RH Bumper Support Not for USA and CDN	-	1	POA (Exc VAT)	?	0
19	12648504	Washer	-	4	£0.23 (Exc VAT)		0
20	127498	Spring Washer 12mm	-	4	£0.11 (Exc VAT)		0
21	15540621	Bolt	-	4	POA (Exc VAT)	?	0
22	104114	Nyloc Nut M10 x 1.25 x 12	-	8	£0.30 (Exc VAT)		0
23	12646821	Washer D.10 20-25x2	-	8	£0.09 (Exc VAT)		0
24	102741	Nyloc Nut 6x6mm	-	4	£0.16 (Exc VAT)		0
25	12646601	Washer	-	4	POA (Exc VAT)	?	0
	Superseded by 12646604	Washer D6 15-15 x 1.5	N	4	£0.21 (Exc VAT)		0
26	66223600	Front Grille Brackets	-	8	£16.71 (Exc VAT)	?	0
27	16285127	Screw M5 x 16	-	16	£0.47 (Exc VAT)		0
28	13274177	Screw M5 x 14 TCIC	-	8	£0.35 (Exc VAT)		0
29	65270200	Bracket	-	2	POA (Exc VAT)	?	0
30	16287024	Screw 8x16	-	4	£0.47 (Exc VAT)		0
31	168355	RH Air Conveyor	-	1	POA (Exc VAT)	?	0
31	168356	LH Air Conveyor	-	1	POA (Exc VAT)	?	0
32	14662695	Captive Bolt M6 x 16 SP.1	-	4	£3.53 (Exc VAT)		0
33	66288200	LH Bracket Valid for USA and CDN	-	1	£185.73 (Exc VAT)	?	0
33	66288100	RH Inner Bracket Valid for USA and CDN	-	1	£185.73 (Exc VAT)	?	0
34	65170300	LH Support Valid for USA and CDN	-	1	£220.88 (Exc VAT)	?	0
34	65170200	RH Support Valid for USA and CDN	-	1	£220.88 (Exc VAT)	?	0
35	63214100	Bumper Pad Valid for USA and CDN	-	2	£27.20 (Exc VAT)	?	0
36	63738800	Spacer Valid for USA and CDN	-	2	£3.09 (Exc VAT)		0
37	65372900	Bushing Valid for USA and CDN	-	8	£4.32 (Exc VAT)	?	0
38	104114	Nyloc Nut M10 x 1.25 x 12 Valid for USA and CDN	-	6	£0.30 (Exc VAT)		0
39	15888721	Screw Valid for USA and CDN	-	2	£1.73 (Exc VAT)	?	0
40	12646821	Washer D.10 20-25x2 Valid for USA and CDN	-	2	£0.09 (Exc VAT)		0
41	60987900	Front/Rear Number Plate Surround Valid for USA and CDN	-	1	£38.94 (Exc VAT)		0
42	14115680	Plastic Screw Plug	-	4	£0.05 (Exc VAT)		0
43	15687375	Self Tapping Screw 3.5x16 Not for USA and CDN	-	4	£0.47 (Exc VAT)		0
43	15688175	Screw Valid for USA and CDN	-	4	£0.57 (Exc VAT)		0
44	14201980	Fixing Block Valid for USA and CDN	-	4	£0.11 (Exc VAT)		0
45	66087500	RH Bracket	-	1	£29.28 (Exc VAT)	?	0
45	66087600	LH Bracket	-	1	£29.28 (Exc VAT)	?	0
46	15917777	Screw	-	4	£0.10 (Exc VAT)		0
47	14296196	Rivet	-	4	£0.22 (Exc VAT)		0
48	67418600	Plug Spacer Valid for USA and CDN	-	2	£157.67 (Exc VAT)	?	0
