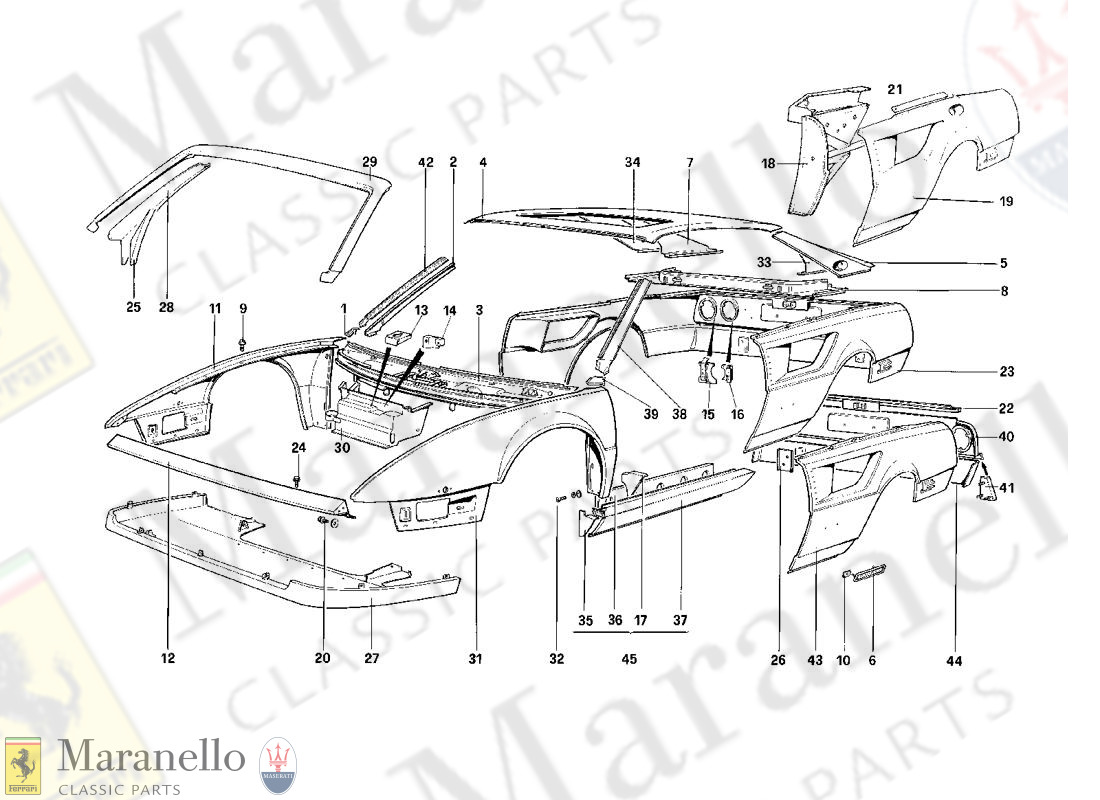

Ferrari / Mondial Cabriolet 3.2 (Inc Coupe) / 101 - Body Shell - Outer Elements

Reset

< Prev Next >

001 - Engine - Gearbox And Supports

002 - Crankcase

003 - Crankshaft - Connecting Rods And Pistons

004 - Flywheel And Clutch Housing Spacer

005 - Cylinder Head (Right)

006 - Cylinder Head (Left)

007 - Timing System - Tappets

008 - Timing System - Controls

009 - Air Injection (For Us Version)

010 - Air Injection (For Ch Version)

011 - Antievaporative Emission Control System (For Us Version)

012 - Fuel Pump And Pipes (Not For Us Version)

013 - Fuel Pump And Pipes (For Us Version)

014 - Fuel Distributors Lines (Not For Us And Ch87 Version)

015 - Fuel Distributors Lines (For Us Version)

016 - Fuel Distributors Lines (For Ch87 Version)

017 - Air Intake And Manifolds

018 - Throttle Housing And Linkage

019 - Exhaust System (Not For Us And Sa Version)

020 - Exhaust System (For Us And Sa Version)

021 - Blow - By System

022 - Lubrication System

023 - Cooling System

024 - Water Pump And Piping

025 - Clutch And Controls

026 - Clutch Release Control (For Car Without Antiskid System)

027 - Clutch Release Control (For Car With Antiskid System)

028 - Gearbox Transmission

029 - Gearbox - Differential Housing And Oil Sump

030 - Main Shaft Gears

031 - Lay Shaft Gears

032 - Inside Gearbox Controls

033 - Outside Gearbox Controls

034 - Differential And Axle Shafts

035 - Brake Hydraulic System (For Car Without Antiskid System)

036 - Brake Hydraulic System (For Car With Antiskid System)

037 - Hydraulic System For Antiskid

038 - Brake System (For Car Without Antiskid System)

039 - Anti Skid System

040 - Calipers For Front And Rear Brakes

041 - Hand - Brake Control

042 - Steering Box And Linkage

043 - Steering Column

044 - Front Suspension - Shock Absorber And Brake Disc

045 - Front Suspension - Wishbones

046 - Rear Suspension - Shock Absorber And Brake Disc

047 - Rear Suspension - Wishbones

048 - Wheels

049 - Engine Ignition

050 - Electric Generation System

051 - Air Conditioning Compressor And Controls

052 - Tool - Kit

053 - Pedal Board - Clutch Control (For Car Without A

054 - Pedal Board - Clutch Control (For Car With Anti

055 - Throttle Control And Brake Hydraulic System (For RHD)

056 - Throttle Control And Brake Hydraulic System (For RHD)

101 - Body Shell - Outer Elements

102 - Body Shell - Inner Elements Without Antiskid

103 - Body Shell - Inner Elements With Antiskid

104 - Body Shell - Inner Elements - 3.2 Mondial Coupe

105 - Body Shell - Inner Elements - Cabriolet

106 - Luggage And Passenger Compartment, Insulation - 3.2

107 - Luggage And Passenger Compartment, Insulation - 3.2

108 - Luggage And Passenger Compartment, Insulation - Cab

109 - Luggage And Passenger Compartment, Insulation - Cab

110 - Front Compartment Lid

111 - Engine Compartment And Carpeting

112 - Luggage Compartment Lid

113 - Doors - 3.2 Mondial Coupe

114 - Doors - Cabriolet

115 - Bumpers And Moldings

116 - Glasses

117 - Seats - 3.2 Mondial Coupe

118 - Seats - Cabriolet

119 - Roof, Tunnel And Safety Belts - 3.2 Mondial Coupe

120 - Roof, Tunnel And Safety Belts - Cabriolet

121 - Instruments Panel

122 - Instruments

123 - Headlights Lifting Device And Headlights

124 - Windshield Wiper And Horns

125 - Electrical System

126 - Electrical Boards

127 - Secondary Electrical Boards - Ch88 Excluded

128 - Secondary Electrical Boards - For Ch88

129 - Heating System

130 - Sun Roof - 3.2 Mondial Coupe

131 - Top - Cabriolet

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	60738900	RH Front Wing Panel Trim	N	1	£45.14 (Exc VAT)		0
2	60921500	RH Inner Pillar	N	1	£21.23 (Exc VAT)	?	0
2	60921400	LH Inner Pillar	N	1	£21.23 (Exc VAT)	?	0
2	60922000	RH Inner Pillar	N	1	£25.39 (Exc VAT)		0
2	60921900	LH Inner Pillar	N	1	£19.79 (Exc VAT)		0
3	61088400	Under Windshield Frame LHD LHD	N	1	£664.16 (Exc VAT)		0
3	61121900	Under Windshield Frame RHD RHD	N	1	£903.79 (Exc VAT)	?	0
3	61993900	Under Windshield LHD LHD	N	1	£1,063.01 (Exc VAT)		0
3	62333300	Under Windshield RHD RHD	N	1	£787.71 (Exc VAT)		0
3	61145900	Under Windshield Frame LHD TA - LHD	N	1	£676.96 (Exc VAT)		0
3	61178400	Under Windshield Frame RHD TA - RHD	N	1	£617.93 (Exc VAT)	?	0
3	62331800	Under Windshield LHD TA- LHD	N	1	£537.16 (Exc VAT)		0
3	62421200	Under Windshield RHD TA - RHD	N	1	£773.86 (Exc VAT)		0
4	60545400	Roof Panel	N	1	£1,251.69 (Exc VAT)		0
4	60913800	Roof Panel TA	N	1	£725.85 (Exc VAT)		0
5	60722300	LH Rear Roof Support Panel	N	1	£74.39 (Exc VAT)		0
5	62374900	LH Rear Roof Support Panel Can be installed on cars without anti-skid	N	1	£45.89 (Exc VAT)		0
6	20043105	Motif "Pininfarina"	N	2	£56.56 (Exc VAT)		0
7	60759400	RH Inner Panel	N	1	£14.41 (Exc VAT)		0
8	60780800	Frame	N	1	£374.76 (Exc VAT)		0
9	13835971	Bolt	N	10	£0.30 (Exc VAT)	?	0
	Superseded by 13835924	Self locking flange Bolt	N	10	£1.60 (Exc VAT)		0
10	60324506	Safety Clip	N	4	POA (Exc VAT)	?	0
	Superseded by 88074800	Safety Clip	N	4	£0.19 (Exc VAT)		0
11	61707700	RH Front Wing Panel Not for US	N	1	£2,032.60 (Exc VAT)	?	0
11	61743900	RH Front Wing Panel US	N	1	£735.98 (Exc VAT)	?	0
12	60970900	Front Panel	N	1	POA (Exc VAT)	?	0
	Superseded by 62550400	Front Upper Panel	MP N	1	£737.17 (Exc VAT)		0
13	60842500	Bracket Ver/Us US - SA	N	1	£13.79 (Exc VAT)	?	0
14	60644800	Support	N	1	£13.87 (Exc VAT)		0
15	61865200	Support	N	2	£16.22 (Exc VAT)		0
16	61865400	RH Inner Support	N	1	£7.27 (Exc VAT)	?	0
16	61865500	LH Inner Support	N	1	£7.27 (Exc VAT)	?	0
17	60888600	RH Shield	N	1	£7.48 (Exc VAT)		0
17	60888700	LH Shield	N	1	£7.69 (Exc VAT)		0
18	61205900	RH Chassis Frame Rear Cabriolet	N	1	£228.82 (Exc VAT)	?	0
18	61206000	LH Chassis Frame Rear Cabriolet	N	1	£228.82 (Exc VAT)	?	0
19	61840200	RH Rear Wing Cabriolet Not for US-SA C7-C8	N	1	£2,059.30 (Exc VAT)		0
19	61784000	RH Rear Wing Cabriolet US	N	1	£1,900.74 (Exc VAT)		0
19	61961100	RH Rear Wing Cabriolet SA - C7	N	1	£1,491.16 (Exc VAT)	?	0
19	62436700	RH Rear Wing Cabriolet	N	1	£1,794.80 (Exc VAT)	?	0
19	61840300	LH Rear Wing Cabriolet Not for US	N	1	£2,136.81 (Exc VAT)		0
19	61784100	LH Rear Wing Cabriolet US	N	1	£1,537.37 (Exc VAT)		0
19	62375700	LH Rear Wing Cabriolet Not for US - Can be installed on cars without anti-skid	N	1	£1,491.16 (Exc VAT)		0
19	62376100	LH Rear Wing Cabriolet US	N	1	£1,830.34 (Exc VAT)		0
20	13833271	Bolt	N	4	POA (Exc VAT)	?	0
	Superseded by 13833224	Screw	N	4	£0.12 (Exc VAT)		0
21	61251500	RH Strip	N	1	£12.08 (Exc VAT)		0
21	61251600	LH Strip	N	1	£12.08 (Exc VAT)		0
22	61865600	Support For Rear Panel	N	1	£82.90 (Exc VAT)		0
23	61697200	Rear Panel Not for US -SA- AUS -C7-C8	N	1	£3,994.16 (Exc VAT)	?	0
23	61728700	Rear Panel US	N	1	£2,954.54 (Exc VAT)	?	0
23	61959900	Rear Panel SA - AUS - C7	N	1	£3,128.06 (Exc VAT)	?	0
23	62435300	Rear Panel C8	N	1	£3,122.37 (Exc VAT)	?	0
23	61840100	Rear Panel Not for US-SA-C7-C8	N	1	£3,128.06 (Exc VAT)	?	0
23	62378200	Rear Panel Not for US-SA-C7-C8 - The under windshield for cars with Anti-skid can be installed on cars without	N	1	£3,148.69 (Exc VAT)	?	0
23	61783900	Rear Panel US	N	1	£2,943.19 (Exc VAT)	?	0
23	62378300	Rear Panel US	N	1	£3,148.69 (Exc VAT)	?	0
23	61961000	Rear Panel SA - C7	N	1	£3,128.06 (Exc VAT)	?	0
23	62435300	Rear Panel	N	1	£3,122.37 (Exc VAT)	?	0
24	15925601	Screw	N	7	£0.21 (Exc VAT)	?	0
25	61214300	RH Reinforcement	N	1	£11.09 (Exc VAT)		0
25	61214400	LH Reinforcement	N	1	£12.36 (Exc VAT)		0
26	60603200	RH Reinforcement Not for US-AUS-SA-C7-C8	N	1	£9.39 (Exc VAT)		0
26	60603300	LH Reinforcement Not for US-AUS-SA-C7-C8	N	1	£9.39 (Exc VAT)	?	0
27	61691900	Spoyler Not for US - SA	N	1	£1,479.95 (Exc VAT)	?	0
27	61743800	Spoyler US - SA	N	1	£1,018.99 (Exc VAT)		0
28	61214000	RH Inner Covering	N	1	£46.40 (Exc VAT)		0
28	61214100	LH Inner Covering	N	1	£46.40 (Exc VAT)		0
29	61213600	Front Window Frame	N	1	£1,379.15 (Exc VAT)		0
30	61087100	Shield LHD LHD	N	1	£135.96 (Exc VAT)		0
30	61121500	Shield RHD RHD	N	1	£111.94 (Exc VAT)	?	0
30	62331300	Protection LHD LHD	N	1	£142.94 (Exc VAT)		0
30	62333800	Protection RHD RHD	N	1	£177.79 (Exc VAT)		0
31	61707800	LH Front Wing Panel Not for US	N	1	£1,599.94 (Exc VAT)	?	0
31	61744000	LH Front Wing Panel US	N	1	£735.98 (Exc VAT)	?	0
32	13833171	Screw	N	8	£0.17 (Exc VAT)	?	0
33	60759500	LH Inner Panel	N	1	£48.22 (Exc VAT)		0
34	60512700	RH Rear Roof Support Panel	N	1	£19.86 (Exc VAT)		0
35	60543100	RH Sill Plate	N	1	£6.42 (Exc VAT)		0
35	60543200	LH Sill Plate	N	1	£8.24 (Exc VAT)		0
36	60543000	Inner Sill	N	2	£20.80 (Exc VAT)		0
37	60512300	RH Door Sill Panel	N	1	£500.60 (Exc VAT)		0
37	60512400	LH Door Sill Panel	N	1	£521.23 (Exc VAT)		0
38	60583900	LH Outer Pillar	N	1	£17.62 (Exc VAT)		0
39	60739000	LH Front Wing Panel Trim	N	1	£112.00 (Exc VAT)		0
40	61865000	Rear Panel	N	1	£1,076.76 (Exc VAT)		0
41	60721700	Bracket For Electromagnet	N	1	£73.51 (Exc VAT)		0
42	60583800	RH Outer Pillar	N	1	£17.62 (Exc VAT)		0
43	61697300	RH Rear Wing Panel Coupe Not for US-SA-AUS-C7-C8	N	1	£1,154.09 (Exc VAT)		0
43	61728800	RH Rear Wing Panel Coupe	N	1	£1,085.84 (Exc VAT)		0
43	61959800	RH Rear Wing Panel Coupe SA - AUS - C7	N	1	£1,334.00 (Exc VAT)	?	0
43	62435400	RH Rear Wing Panel Coupe	N	1	£1,149.82 (Exc VAT)	?	0
43	61697400	LH Rear Wing Panel Coupe Not for US	N	1	£1,281.38 (Exc VAT)	?	0
43	61728900	LH Rear Wing Panel Coupe US	N	1	£1,334.00 (Exc VAT)		0
44	61697800	Rear Panel Not for US - AUS - C7 - C8 - SA	N	1	£103.55 (Exc VAT)		0
45	60542800	RH Side Frame	N	1	£211.91 (Exc VAT)		0
45	60542900	LH Side Frame	N	1	£211.91 (Exc VAT)		0
