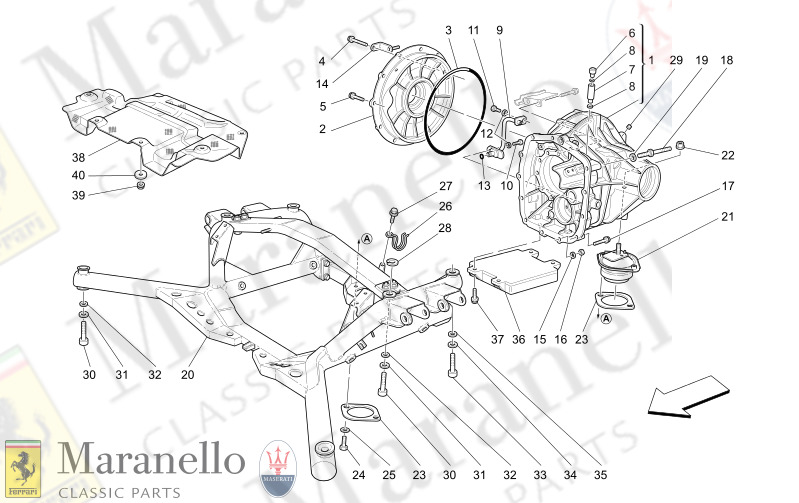

M3.22 - 1 DIFFERENTIAL BOX AND REAR UNDERBODY

M1.00 - 1 CRANKCASE

M1.10 - 1 CRANKSHAFT, CONNECTING RODS AND PISTONS

M1.20 - 1 RH CYLINDER HEAD

M1.21 - 1 LH CYLINDER HEAD

M1.22 - 1 TIMING - SHAFTS AND VALVES

M1.24 - 1 TIMING - CONTROLS

M1.40 - 1 INTAKE MANIFOLD AND THROTTLE BODY

M1.42 - 1 FUEL TANK

M1.43 - 1 FUEL PUMPS AND CONNECTION LINES

M1.44 - 1 ANTIEVAPORATION SYSTEM

M1.44 - 2 ANTIEVAPORATION SYSTEM

M1.50 - 1 ADDITIONAL AIR SYSTEM

M1.60 - 1 LUBRICATION SYSTEM CIRCUIT AND COLLECTION

M1.61 - 1 LUBRICATION SYSTEM PUMP AND FILTER

M1.63 - 1 OIL VAPOUR RECIRCULATION SYSTEM

M1.70 - 1 COOLING AIR RADIATORS AND DUCTS

M1.71 - 1 COOLING SYSTEM NOURICE AND LINES

M1.71 - 2 COOLING SYSTEM NOURICE AND LINES

M1.82 - 1 EXHAUST SYSTEM

M1.82 - 2 EXHAUST SYSTEM

M1.90 - 1 INJECTION - IGNITION DEVICE

M1.91 - 1 ALTERNATOR AND STARTING MOTOR

M2.10 - 1 CLUTCH DISCS AND HOUSING FOR MECHANICAL GEARBOX

M2.11 - 1 FRICTION DISCS AND HOUSING FOR F1 GEARBOX

M3.03 - 1 DRIVER CONTROLS FOR GEARBOX

M3.10 - 1 GEARBOX HOUSINGS

M3.11 - 1 MAIN SHAFT GEARS

M3.12 - 1 LAY SHAFT GEARS

M3.13 - 1 INNER CONTROLS

M3.21 - 1 DIFFERENTIAL AND REAR AXLE SHAFTS

M3.22 - 1 DIFFERENTIAL BOX AND REAR UNDERBODY

M3.30 - 1 TRANSMISSION SHAFT

M3.40 - 1 F1 CLUTCH HYDRAULIC CONTROL

M3.41 - 1 POWER UNIT AND TANK

M4.00 - 1 BRAKES AND CLUTCH HYDRAULIC CONTROLS

M4.12 - 1 BRAKING DEVICES ON WHEELS

M4.20 - 1 BRAKING SYSTEM

M4.20 - 2 BRAKING SYSTEM

M4.30 - 1 PARKING BRAKE

M5.00 - 1 STEERING COLUMN AND STEERING WHEEL UNIT

M5.10 - 1 STEERING RACK AND HYDRAULIC STEERING PUMP

M5.20 - 1 COMPLETE PEDAL BOARD UNIT

M5.20 - 2 COMPLETE PEDAL BOARD UNIT

M6.00 - 1 WHEELS AND TYRES

M6.10 - 1 FRONT SUSPENSION

M6.11 - 1 FRONT SHOCK ABSORBER DEVICES

M6.12 - 1 FRONT UNDERCHASSIS

M6.20 - 1 REAR SUSPENSION

M6.21 - 1 REAR SHOCK ABSORBER DEVICES

M7.30 - 1 ACCESSORIES PROVIDED

M7.30 - 2 ACCESSORIES PROVIDED

M8.20 - 1 BATTERY

C7.00 - 1 AIRBAG SYSTEM

C8.00 - 1 WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

C8.33 - 1 LIGHT CLUSTERS

C8.33 - 2 LIGHT CLUSTERS Available with Xeno Headlights and Headligts Washer

C8.40 - 1 AC UNIT ENGINE COMPARTMENT DEVICES

C8.41 - 1 AC UNIT DASHBOARD DEVICES

C8.50 - 1 PASSENGER COMPARTMENT DEVICES

C8.50 - 2 PASSENGER COMPARTMENT DEVICES

C8.53 - 1 ALARM AND IMMOBILIZER SYSTEM

C8.53 - 3 ALARM AND IMMOBILIZER SYSTEM

C8.60 - 1 MAIN WIRING

C8.71 - 1 IT SYSTEM

C8.71 - 2 IT SYSTEM

C8.73 - 1 ENGINE COMPARTMENT CONTROL UNITS

C8.74 - 1 PASSENGER COMPARTMENT CONTROL UNITS

C8.74 - 2 PASSENGER COMPARTMENT CONTROL UNITS

C8.75 - 1 TRUNK COMPARTMENT CONTROL UNITS

C8.75 - 2 TRUNK COMPARTMENT CONTROL UNITS

C9.00 - 1 BODYWORK AND FRONT OUTER TRIM PANELS

C9.01 - 1 BODYWORK AND CENTRAL OUTER TRIM PANELS

C9.02 - 1 BODYWORK AND REAR OUTER TRIM PANELS

C9.03 - 1 FRONT STRUCTURAL FRAMES AND SHEET PANELS

C9.04 - 1 CENTRAL STRUCTURAL FRAMES AND SHEET PANELS

C9.05 - 1 REAR STRUCTURAL FRAMES AND SHEET PANELS

C9.10 - 1 FRONT BUMPER

C9.11 - 1 REAR BUMPER

C9.13 - 1 WHEELHOUSE AND LIDS

C9.15 - 1 SHIELDS, TRIMS AND COVERING PANELS

C9.17 - 1 STICKERS AND LABELS

C9.20 - 1 FRONT LID

C9.21 - 1 REAR LID

C9.30 - 1 FRONT DOORS TRIM PANELS

C9.31 - 1 FRONT DOORS MECHANISMS

C9.34 - 1 WINDOWS AND WINDOW STRIPS

C9.35 - 1 GLASS LIFT AND EXTERNAL REAR-VIEW MIRRORS

C9.40 - 1 FRONT SEATS TRIM PANELS

C9.41 - 1 FRONT SEATS MECHANICS AND ELECTRONICS

C9.42 - 1 REAR SEATS TRIM PANELS

C9.44 - 1 INNER TRIMS

C9.44 - 2 INNER TRIMS

C9.45 - 1 ROOF PANEL UPHOLSTERY AND ACCESSORIES

C9.46 - 1 REAR PARCEL SHELF

C9.50 - 1 DASHBOARD UNIT

C9.50 - 2 DASHBOARD UNIT

C9.51 - 1 ACCESSORY CONSOLE AND CENTRE CONSOLE

C9.52 - 1 GLOVE COMPARTMENTS

C9.60 - 1 PASSENGER COMPARTMENT MATS

C9.61 - 1 TRUNK HOOD COMPARTMENT TRIMS

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	192732	Complete Differential Box	-	1	£996.00 (Exc VAT)	?	0
2	184767	Differential Cover	-	1	£180.00 (Exc VAT)	?	0
3	14468781	Ring Gasket	-	1	£39.90 (Exc VAT)	?	0
4	16287321	Screw	-	10	£9.65 (Exc VAT)	?	0
5	16287221	Screw	-	1	£3.30 (Exc VAT)	?	0
6	13414691	Oil Breather	-	1	£6.85 (Exc VAT)	?	0
7	186900	Adapter For Vent	-	1	£70.30 (Exc VAT)	?	0
8	13415400	Oil Seal Disc for Breather	-	2	£1.35 (Exc VAT)	?	0
9	185720	Lubrication Tube Valid for F1	-	1	£119.00 (Exc VAT)	?	0
9	185720	Lubrication Tube Not for F1- -Valid till car Ass. Nr. 13598- -Not for cars with complete gearboxcode 203017	-	1	£119.00 (Exc VAT)	?	0
9	203060	Lubrication Tube Not for F1- -Valid from car Ass. Nr. 13599- -Valid for cars with complete gearboxcode 203017	-	1	£64.40 (Exc VAT)	?	0
10	10902224	Screw F1	-	1	£1.35 (Exc VAT)	?	0
11	10979424	Screw TE M6X10	-	1	£1.35 (Exc VAT)	?	0
12	11194377	Washer	-	2	£1.35 (Exc VAT)		0
13	137192	Ring Gasket	-	1	£1.35 (Exc VAT)	?	0
14	149694	Fixing Bracket -F1 Valid for F1	-	2	£10.70 (Exc VAT)	?	0
15	12601374	Washer D. 8,40-15X 0,8	-	2	£1.10 (Exc VAT)		0
16	16100812	Nut	-	2	£1.35 (Exc VAT)		0
17	16287521	Screw 8x40 M 8X40	-	9	£3.05 (Exc VAT)	?	0
17	16287624	Screw 8x45 M 8X45	-	1	£6.00 (Exc VAT)	?	0
17	16287921	Screw 8x60 M 8X60- -Not for F1	-	1	£3.05 (Exc VAT)	?	0
18	190044	Stud Valid for F1	-	1	£20.10 (Exc VAT)	?	0
19	12601374	Washer D. 8,40-15X 0,8 Valid for F1	-	1	£1.10 (Exc VAT)		0
20	67390400	Underframe - Rear	-	1	£1,600.00 (Exc VAT)	?	0
21	186908	Pad	-	1	£631.00 (Exc VAT)	?	0
22	177018	Nut	-	1	£2.05 (Exc VAT)	?	0
23	66428300	Gear Support Flange	-	2	£5.25 (Exc VAT)	?	0
24	14307534	Screw	-	2	£6.80 (Exc VAT)	?	0
25	11198374	Washer	-	2	£2.10 (Exc VAT)	?	0
26	188971	Pipes Retaining Spring -F1 Valid for F1	-	1	£4.00 (Exc VAT)	?	0
27	16297034	Screw Valid for F1	-	1	£1.95 (Exc VAT)	?	0
28	377030380	WASHER 1.00 Tickness mm. 1	-	0	£21.30 (Exc VAT)	?	0
28	377030382	WASHER 3.0 Tickness mm. 3	-	0	£5.65 (Exc VAT)	?	0
29	14326101	Plug	-	1	£1.35 (Exc VAT)	?	0
30	14331574	Screw 12x50	-	4	£9.55 (Exc VAT)	?	0
31	11198674	Washer 12x50	-	4	£1.75 (Exc VAT)	?	0
32	10738021	Washer 12x50	-	4	£3.95 (Exc VAT)	?	0
33	14312174	Screw	-	2	£9.55 (Exc VAT)	?	0
34	66490100	Washer	-	2	£2.30 (Exc VAT)	?	0
35	67246100	Washer	-	2	£6.70 (Exc VAT)	?	0
36	187872	Torsion Damper	-	1	£238.00 (Exc VAT)	?	0
37	16297034	Screw	-	4	£1.95 (Exc VAT)	?	0
38	66303000	Gearbox Heat Shield	-	1	£48.90 (Exc VAT)	?	0
39	14059111	Nut	-	4	£1.00 (Exc VAT)	?	0
40	12624124	Washer	-	4	£1.35 (Exc VAT)	?	0
