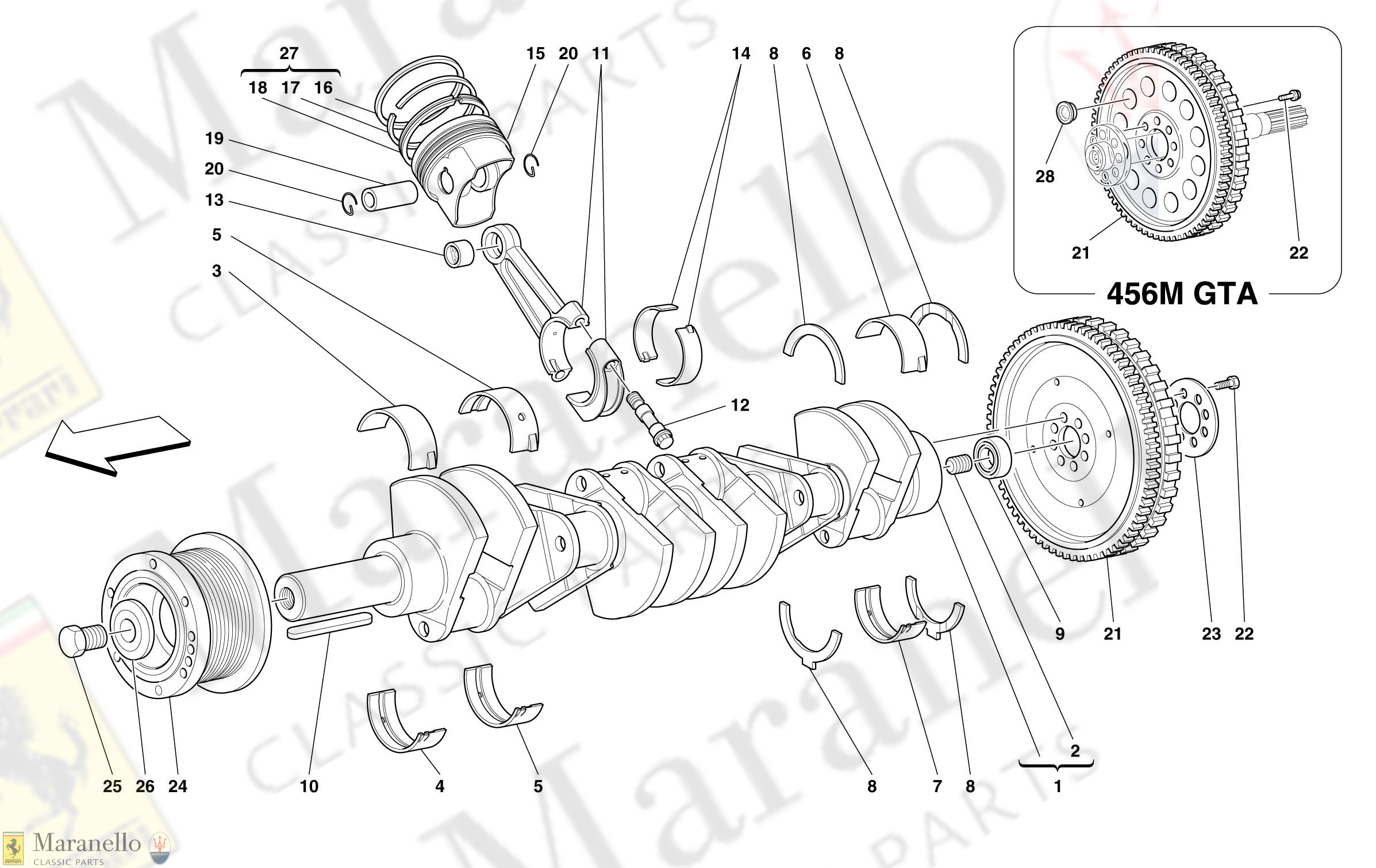

003 - Driving Shaft - Connecting Rods And Pistons

001 - Crankcase

002 - Crankcase - Covers

003 - Driving Shaft - Connecting Rods And Pistons

004 - R.H. Cylinder Head

005 - L.H. Cylinder Head

006 - Timing - Controls

007 - Timing - Valves

008 - Engine Covers

009 - Fuel Supply System

010 - Fuel Cooling System -Valid For Usa M.Y. 2000, Usa M.Y. 2001, Usa M.Y. 2002, Usa M.Y. 2003, Cdn M.Y.

011 - Fuel Pump

012 - Fuel Tank -Not For Usa M.Y. 2000, Usa M.Y. 2001, Usa M.Y. 2002, Usa M.Y. 2003, Cdn M.Y. 2000, Cdn M.

013 - Fuel Tank -Valid For Usa M.Y. 2000, Usa M.Y. 2001, Usa M.Y. 2002, Usa M.Y. 2003, Cdn M.Y. 2000, Cdn

014 - Antievaporation Device -Not For Usa, Cdn And Aus-

015 - Antievaporation Device -Valid For Usa, Cdn And Aus - Not For Usa M.Y. 2000, Usa M.Y. 2001, Usa M.Y.

016 - Antievaporation Device -Valid For Usa M.Y. 2000, Usa M.Y. 2001, Usa M.Y. 2002, Usa M.Y. 2003, Cdn M.

017 - Injection Device

018 - Ignition Device

019 - Secondary Air Pump

020 - Air Intake Manifolds

021 - Air Intake

022 - Exhaust System

023 - Blow-By System

024 - Lubrication System - Tank

025 - Lubrication - Oil Pumps

026 - Lubrication - Oil Sumps And Filters

027 - Cooling System - Radiator And Nourice

028 - Water Pump

029 - Clutch - Controls -Not For 456M Gta-

030 - Clutch Housing -Valid For 456M Gta-

031 - Gearbox -Not For 456M Gta-

032 - Complete Gearbox -Valid For 456M Gta-

033 - Differential Carrier And Gearbox Cooling Radiator -Not For 456M Gta-

034 - Gearbox Cooling Radiator -Valid For 456M Gta-

035 - Main Shaft Gears And Gearbox Oil Pump -Not For 456M Gta-

036 - Lay Shaft Gears -Not For 456M Gta-

037 - Inside Gearbox Controls -Not For 456M Gta-

038 - Outside Gearbox Controls -Not For 456M Gta-

039 - Outside Gearbox Controls -Valid For 456M Gta-

040 - Engine Connection Tube - Gearbox And Insulation

041 - Differential And Axle Shaft -Not For 456M Gta-

042 - Flanges And Axle Shaft -Valid For 456M Gta-

043 - Brake And Clutch Hydraulic System -Not For Gd-

044 - Brake And Clutch Hydraulic System -Valid For Gd-

045 - Pedals And Accelerator Control -Not For Gd-

046 - Pedals And Accelerator Control -Valid For Gd-

047 - Brake System -Not For Gd-

048 - Brake System -Valid For Gd-

049 - Control Unit And Hydraulic Equipment For Abs System

050 - Caliper For Front Brake

051 - Caliper For Rear Brake

052 - Hand-Brake Control -Not For 456M Gta-

053 - Hand-Brake Control -Valid For 456M Gta-

054 - Hydraulic Steering Box And Serpentine -Not For Gd-

055 - Hydraulic Steering Box And Serpentine -Valid For Gd-

056 - Steering Column

057 - Hydraulic Steering Pumps

058 - Self-Levelling Suspension System -Not For 456M Gta-

059 - Self-Levelling Suspension System -Valid For 456M Gta-

060 - Front Suspension - Shock Absorber And Brake Disc

061 - Front Suspension - Wishbones And Stabilizer Bar

062 - Rear Suspension - Shock Absorber And Brake Disc

063 - Rear Suspension - Wishbones And Stabilizer Bar

064 - Wheels

065 - Battery

066 - Alternator - Starting Motor - Air Conditioning Compressor

067 - Air Conditioning System

068 - Evaporator Unit And Controls

069 - Equipment And Fixing

070 - Spare Wheel And Equipment

071 - Spare Wheel Fixings

100 - Frame And Structures

101 - Front Structures And Components

102 - Central Structures And Components

103 - Rear Structures And Components

104 - Roof Panel Structures And Components

105 - Front Bumper

106 - Rear Bumper

107 - Passengers Compartment And Engine Compartment Insulations

108 - Trunk Hood Insulations -Not For 456M Gta-

109 - Trunk Hood Insulations -Valid For 456M Gta-

110 - Passengers Compartment Upholstery And Carpets

111 - Roof Panel Upholstery And Accessories

112 - Trunk Hood Upholstery -Not For 456M Gta-

113 - Trunk Hood Upholstery -Valid For 456M Gta-

114 - Engine Bonnet

115 - Trunk Hood Bonnet And Petrol Cover

116 - Doors - Framework And Coverings

117 - Doors - Opening Control And Hinges

118 - Doors - Power Window And Rearview Mirror

119 - Glasses And Gasket

120 - Front Seats And Seat Belts

121 - Front Seat Movement System

122 - Rear Seats And Belts

123 - Tunnel - Upholstery And Accessories

124 - Dashboard

125 - Air-Bags

126 - Instruments

127 - Front And Rear Lights - Outside Finishings

128 - Lights Lifting Device And Headlights

129 - Electrical System

130 - Electrical Boards

131 - Stereo Equipment

132 - Windshield Wiper, Washer And Horns

133 - Anti-Theft Electrical Boards And Devices

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
-	173484	Main Bearing Set Standard 5.2 Motronic NOMINAL	-	1	POA (Exc VAT)	?	0
-	173485	Main Bearing Set 1st Undersize 0.254mm 1st UNDERSIZE mm. 0,254	-	1	£1,167.16 (Exc VAT)	?	0
-	173486	Main Bearing Set 2nd Undersize 0.508mm 2nd UNDERSIZE mm. 0,508	-	1	£1,167.16 (Exc VAT)	?	0
1	140501	Crankshaft	- £££	1	£1,791.49 (Exc VAT)		0
2	163528	Threaded Plug D. 20 x 11	-	1	£3.23 (Exc VAT)		0
3	-	UPPER FRONT HALF BEARING Not as spare part- -With complete series	-	1	POA		0
4	-	LOWER FRONT HALF BEARING Not as spare part- -With complete series	-	1	POA		0
5	-	INTERMEDIATE HALF BEARING Not as spare part- -With complete series	-	10	POA		0
6	-	UPPER REAR HALF BEARING Not as spare part- -With complete series	-	1	POA		0
7	-	LOWER REAR HALF BEARING Not as spare part- -With complete series	-	1	POA		0
8	164111	Thrust Washer Standard Not as spare part- -With the complete series 173484	-	2	£71.58 (Exc VAT)		0
8	164112	Thrust Washer 1st Oversize 0.127mm Not as spare part- -With the complete series 173485	-	0	POA (Exc VAT)	?	0
8	164113	Thrust Washer 2nd Oversize 0.254mm Not as spare part- -With the complete series 173486	-	0	POA (Exc VAT)	?	0
8	164108	Thrust Washer Standard Not as spare part- -With the complete series 173484	-	2	£71.58 (Exc VAT)		0
8	164109	Thrust Washer 1st Oversize 0.127mm Not as spare part- -With the complete series 173485	-	0	POA (Exc VAT)	?	0
8	164110	Thrust Washer 2nd Oversize 0.254mm Not as spare part- -With the complete series 173486	-	0	POA (Exc VAT)	?	0
9	103877	Ball Bearing Not for 456M GTA	-	1	£19.62 (Exc VAT)		0
10	144876	Woodruff Key	-	1	£3.29 (Exc VAT)	?	0
11	155613	Con Rod Complete	-	12	£285.71 (Exc VAT)	?	0
11	-	CONNECTING ROD WITH HAT Not as spare part- -With the assembly complete connecting rod and cap	-	12	POA		0
12	150966	Con Rod Bolt	-	24	POA (Exc VAT)	?	0
13	170047	Small End Bush	-	12	£30.16 (Exc VAT)	?	0
14	100150	Con Rod Half Bearing Standard	-	24	POA (Exc VAT)	?	0
	Alternative 100150/A	Con Rod Half Bearing Standard Set 4 Pairs	MP N	24	£404.97 (Exc VAT)		0
14	100151	Con Rod Half Bearing 1st Undersize 0.254mm	-	0	£46.83 (Exc VAT)		0
14	100152	Con Rod Half Bearing 2nd Undersize 0.508mm	-	0	£63.11 (Exc VAT)		0
15	168173	Piston With Rings	-	12	£255.93 (Exc VAT)	?	0
16	-	SEAL RING 1st groove- -Not as spare part- -With complete series 173535	-	12	POA		0
17	-	SEAL RING 2nd groove- -Not as spare part- -With complete series 173535	-	12	POA		0
18	-	OIL SCRAPING RING 3rd groove- -Not as spare part- -With complete series 173535	-	12	POA		0
19	154717	Gudgeon Pin	-	12	POA (Exc VAT)	?	0
20	152993	Clip	-	24	£3.63 (Exc VAT)	?	0
21	173760	Flywheel Not for 456M GTA	-	1	POA (Exc VAT)		0
21	170774	Flywheel Valid for 456M GTA	-	1	£702.85 (Exc VAT)		0
22	103875	Flywheel Bolt Not for 456M GTA	-	8	POA (Exc VAT)	?	0
	Superseded by 201755	Bolt M10 x 1.25	N	8	£0.91 (Exc VAT)		0
22	155750	Bolt Valid for 456M GTA	-	8	POA (Exc VAT)		0
23	103876	Flywheel Washer Not for 456M GTA	-	1	£7.86 (Exc VAT)		0
24	168565	Front Torsion Damper Pulley Not for 456M GTA	-	1	£1,417.35 (Exc VAT)		0
24	175690	Front Torsion Damper Pulley Valid for 456M GTA	-	1	POA (Exc VAT)	?	0
25	140925	Bolt	-	1	£101.57 (Exc VAT)	?	0
26	140922	Washer	-	1	POA (Exc VAT)	?	0
27	173535	Piston Ring Set	-	12	POA (Exc VAT)	?	0
28	111540	Anti Vibration Bush Valid for 456M GTA	-	6	POA (Exc VAT)	?	0
