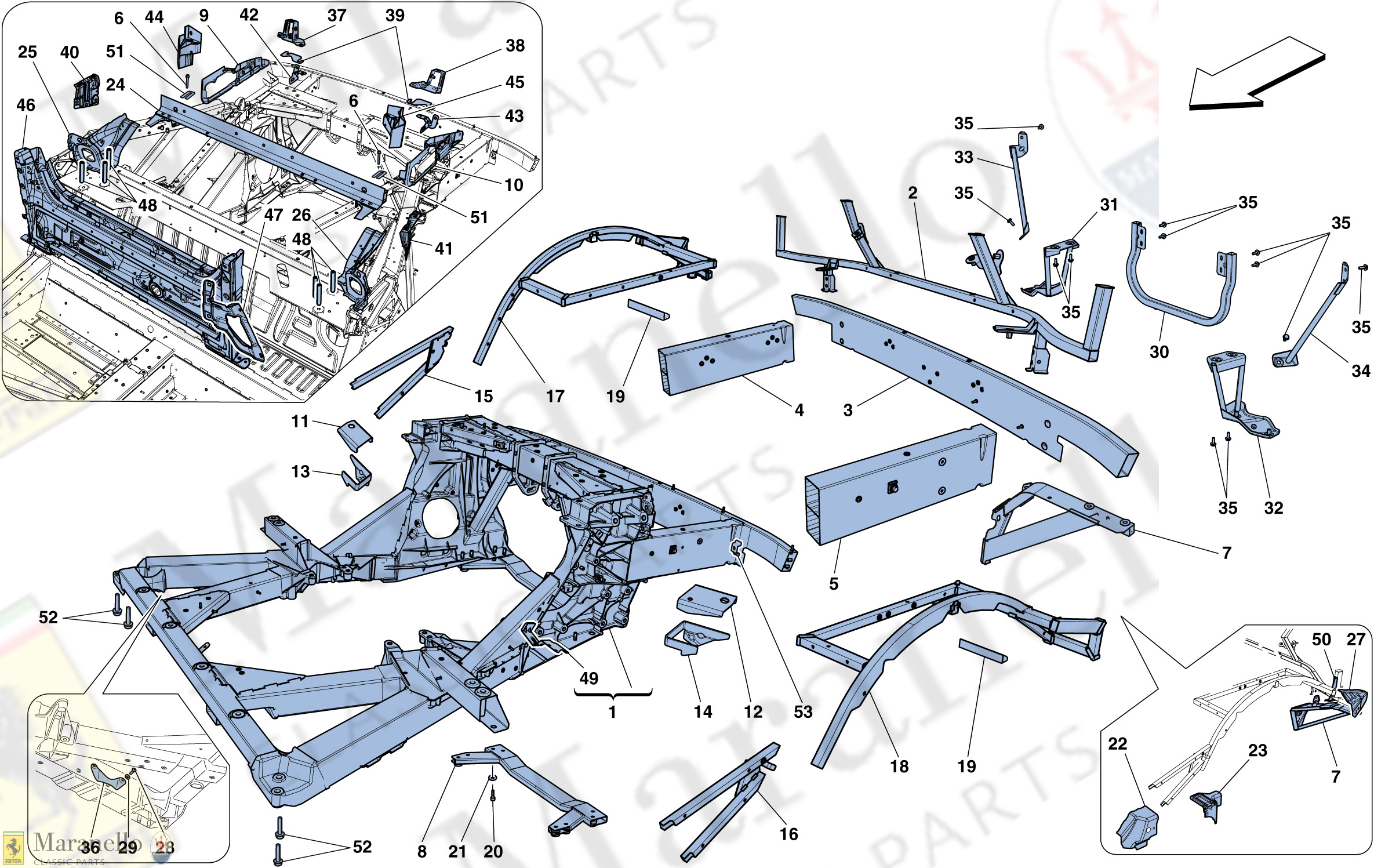

104 - Chassis - Structure, Rear Elements And Panels

000 - Spare Assembly Units

001 - Crankcase

002 - Crankshaft - Connecting Rods And Pistons

003 - Right Hand Cylinder Head

004 - Left Hand Cylinder Head

005 - Timing System - Tappets

006 - Timing System - Drive

007 - Injection - Ignition System

008 - Secondary Air System

009 - Fuel System Pumps And Pipes

010 - Fuel Tanks And Filler Neck

011 - Fuel Tanks - Fasteners And Guards

012 - Evaporative Emissions Control System

013 - Intake Manifold

014 - Air Intake

015 - Intake Manifold Cover

016 - Exhaust System

017 - Heat Exchanger

018 - Lubrication System: Tank, Pump And Filter

019 - Cooling - Water Pump

020 - Cooling - Header Tank And Pipes

021 - Cooling - Radiators And Air Ducts

022 - Gearbox Oil Cooling Radiators

023 - Gearbox Oil Lubrication And Cooling System

024 - Complete Pedal Board Assembly

025 - Gearbox Housing

026 - Gearbox Repair Kit

027 - Power Steering System

028 - Brake System

029 - Front Brake Callipers

030 - Rear Brake Callipers

031 - Parking Brake Control

032 - Hydraulic Power Steering Box

033 - Steering Control

034 - Power Steering Pump And Reservoir

035 - Front Suspension - Shock Absorber And Brake Disc

036 - Front Suspension - Arms

037 - Rear Suspension - Shock Absorber And Brake Disc

038 - Rear Suspension - Arms

039 - Wheels

040 - Tyre Pressure Monitoring System

041 - Vehicle Lift System

042 - Battery

043 - Alternator - Starter Motor

044 - Ac System Compressor

045 - Ac System - Water

046 - Ac System - Freon

047 - Evaporator Unit

048 - Dashboard Air Ducts

049 - Tools And Accessories Provided With Vehicle

050 - MAINTENANCE PROCEDURES -Applicable for S.T. Schedule only-

100 - Bodyshell - External Trim

101 - Chassis - Complete Front Structure And Panels

102 - Chassis - Structure, Front Elements And Panels

103 - Central Elements And Panels

104 - Chassis - Structure, Rear Elements And Panels

105 - Flat Undertray And Wheelhouses

106 - Insulation

107 - Passenger Compartment Mats

108 - Front Compartment Trim

109 - Headliner Trim And Accessories

110 - Roof

111 - Front Lid And Opening Mechanism

112 - Engine Compartment Lid

113 - Engine Compartment Lid And Fuel Filler Flap Opening Mechanisms

114 - Doors - Substructure And Trim

115 - Doors - Opening Mechanism And Hinges

116 - Doors - Power Windows And Rear-View Mirror

117 - Front Bumper

118 - Rear Bumper

119 - Screens, Windows And Seals

120 - Seats - Seat Belts, Guides And Adjustment

121 - Seats - Upholstery And Accessories

122 - Racing Seat

123 - Tunnel - Substructure And Accessories

124 - Dashboard

125 - Glove Compartment

126 - Airbags

127 - Dashboard And Tunnel Instruments

128 - Headlights And Taillights

129 - Shields - External Trim

130 - Windscreen Wiper, Windscreen Washer And Horns

131 - Main Wiring Harnesses

132 - Various Fastenings For The Electrical System

133 - Electronic Management (Suspension)

134 - Vehicle Ecus

135 - Antitheft System

136 - Hi-Fi System

137 - Adhesive Labels And Plaques

138 - Painting -Applicable For S.T. Schedule Only-

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	985285794	Rear Subframe Request ASM authorisation- -Not for CINA, USA, CDN, GOLFO- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
1	985280290	Rear Subframe Request ASM authorisation- -Not for CINA, USA, CDN, GOLFO- -Applicable after depletion of 985285794	-	1	£13,190.10 (Exc VAT)	?	0
1	985288685	Rear Subframe Request ASM authorisation- -Applicable for CINA, USA, CDN, GOLFO- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
1	985280310	Rear Subframe Request ASM authorisation- -Applicable for CINA, USA, CDN, GOLFO- -Applicable after depletion of 985288685- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
1	985280290	Rear Subframe Request ASM authorisation- -Applicable for CINA, USA, CDN, GOLFO- -Applicable after depletion of 985280310	-	1	£13,190.10 (Exc VAT)	?	0
2	82993500	Rear Upper Frame	-	1	£402.07 (Exc VAT)	?	0
3	271420	Rear Bumper Fastening Crossmember Request ASM authorisation- -Applicable up to Ass. No. 109904- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
3	274059	Rear Bumper Fastening Crossmember Request ASM authorisation- -Applicable from Ass. No. 109905- -Applicable after depletion of 271420	-	1	£1,065.03 (Exc VAT)	?	0
4	271357	RH Rear Strut Request ASM authorisation	-	1	£556.96 (Exc VAT)	?	0
5	271356	LH Rear Strut Request ASM authorisation	-	1	£556.96 (Exc VAT)	?	0
6	231630	Screw 8x65	-	4	£0.78 (Exc VAT)	?	0
7	81957100	LH Flank Mounting Bracket Request ASM authorisation- -Applicable up to Ass. No. 114426	-	1	POA (Exc VAT)	?	0
7	85536100	LH Flank Mounting Bracket Request ASM authorisation- -Applicable from Ass. No. 114427	-	1	£321.30 (Exc VAT)	?	0
7	81957000	RH Flank Mounting Bracket Request ASM authorisation- -Applicable up to Ass. No. 114426	-	1	POA (Exc VAT)	?	0
7	85536000	RH Flank Mounting Bracket Request ASM authorisation- -Applicable from Ass. No. 114427	-	1	£321.30 (Exc VAT)	?	0
8	270599	Lower Gearbox Mounting Crossmember	-	1	£367.93 (Exc VAT)	?	0
9	83189900	RH Rear Mounting Bracket	-	1	£230.32 (Exc VAT)	?	0
10	83190200	LH Rear Mounting Bracket	-	1	£230.32 (Exc VAT)	?	0
11	82572600	RH Upper Rear Bracket	-	1	£7.09 (Exc VAT)	?	0
12	82572700	LH Upper Rear Bracket	-	1	£7.09 (Exc VAT)	?	0
13	260696	RH Lower Rear Bracket	-	1	£78.95 (Exc VAT)	?	0
14	260695	LH Lower Rear Bracket	-	1	£90.48 (Exc VAT)	?	0
15	84042200	RH Front Frame	-	1	£394.45 (Exc VAT)	?	0
16	84042600	LH Front Frame	-	1	£394.45 (Exc VAT)	?	0
17	83484200	RH Rear Flank Trellis Applicable up to Ass. No. 114426	-	1	£250.16 (Exc VAT)	?	0
17	85537300	RH Rear Flank Trellis Applicable from Ass. No. 114427	-	1	£250.16 (Exc VAT)	?	0
18	83489700	LH Rear Flank Trellis Applicable up to Ass. No. 114426	-	1	£250.16 (Exc VAT)	?	0
18	85537200	LH Rear Flank Trellis Applicable from Ass. No. 114427	-	1	£250.16 (Exc VAT)	?	0
19	81952000	Angular Brace For Flank Mounting Bracket	-	2	£5.95 (Exc VAT)	?	0
20	14308234	Screw Applicable until depletion	-	10	£1.13 (Exc VAT)	?	0
	Superseded by 101632	Allen Bolt TCEI M10 x 1.25 x 65	N	10	£41.87 (Exc VAT)		0
20	101632	Allen Bolt TCEI M10 x 1.25 x 65 Applicable after depletion of 14308234	-	10	£41.87 (Exc VAT)		0
21	12626024	Washer	-	10	£0.20 (Exc VAT)	?	0
22	81288800	LH Lower Front Bracket	-	1	£124.03 (Exc VAT)	?	0
22	81287800	RH Lower Front Bracket	-	1	£124.03 (Exc VAT)	?	0
23	81518200	LH Lower Rear Bracket	-	1	£34.80 (Exc VAT)	?	0
23	81518100	RH Lower Rear Bracket	-	1	£34.80 (Exc VAT)	?	0
24	82149000	Rear Roof Tub Crossmember	-	1	£287.90 (Exc VAT)	?	0
25	83229400	RH Front Roof Tub Bracket	-	1	POA (Exc VAT)	?	0
26	83229500	LH Front Roof Tub Bracket	-	1	POA (Exc VAT)	?	0
27	81582700	LH Rear Flank Bracket	-	1	£98.53 (Exc VAT)	?	0
27	81582600	RH Rear Flank Bracket	-	1	£98.53 (Exc VAT)	?	0
28	269959	Screw M6 x 1 x 18	-	4	£0.64 (Exc VAT)		0
29	12647778	Cup Washer	-	4	£0.33 (Exc VAT)		0
30	82629200	Centre Rear Trellis Complete	-	1	£157.78 (Exc VAT)	?	0
31	84043900	RH Bumper Mounting Trellis Applicable up to Ass. No. 113746- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
31	85732900	RH Bumper Mounting Trellis Applicable from Ass. No. 113747- -Applicable after depletion of 84043900	-	1	£236.67 (Exc VAT)	?	0
32	84044400	LH Lateral Bumper Bracket Applicable up to Ass. No. 113746- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
32	85733000	LH Lateral Bumper Bracket Applicable from Ass. No. 113747- -Applicable after depletion of 84044400	-	1	£236.67 (Exc VAT)	?	0
33	84043000	RH Lateral Bumper Bracket Applicable up to Ass. No. 113746- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
33	85732700	RH Lateral Bumper Bracket Applicable from Ass. No. 113747- -Applicable after depletion of 84043000	-	1	£118.34 (Exc VAT)	?	0
34	84043400	LH Lateral Bumper Bracket Applicable up to Ass. No. 113746- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
34	85732800	LH Lateral Bumper Bracket Applicable from Ass. No. 113747- -Applicable after depletion of 84043400	-	1	£118.34 (Exc VAT)	?	0
35	11625824	Screw 6x18	-	12	£0.30 (Exc VAT)		0
36	268207	Plate	-	2	£11.43 (Exc VAT)	?	0
37	83330300	RH Lid Buffer Bracket	-	1	£126.00 (Exc VAT)	?	0
38	83458500	LH Lid Buffer Bracket	-	1	£126.00 (Exc VAT)	?	0
39	83458600	Spacer For Buffer Bracket	-	2	£3.78 (Exc VAT)	?	0
40	83499100	RH Flank Lateral Shield Mounting Bracket	-	1	£22.48 (Exc VAT)	?	0
41	83499300	LH Flank Lateral Shield Mounting Bracket	-	1	£13.81 (Exc VAT)	?	0
42	84249300	RH Buffer Connector Bracket	-	1	£9.47 (Exc VAT)	?	0
43	84249500	LH Buffer Connector Bracket	-	1	£9.47 (Exc VAT)	?	0
44	83739000	RH Vertical Extruded Element	-	1	POA (Exc VAT)	?	0
45	83739100	LH Vertical Extruded Element	-	1	£130.55 (Exc VAT)	?	0
46	82140800	Tub For Powered Rear Screen	-	1	POA (Exc VAT)	?	0
47	83959100	LH Pillar Connector Reinforcement	-	1	£28.39 (Exc VAT)	?	0
47	83959000	RH Pillar Connector Reinforcement	-	1	£28.39 (Exc VAT)	?	0
48	13791321	Screw	-	6	£0.79 (Exc VAT)	?	0
49	256195	LH Bracket	-	1	£120.18 (Exc VAT)	?	0
49	256197	RH Bracket	-	1	£120.18 (Exc VAT)	?	0
50	82626400	LH Lateral Rear Bracket Applicable up to Ass. No. 114426	-	1	£26.83 (Exc VAT)	?	0
50	82626300	RH Lateral Rear Bracket Applicable up to Ass. No. 114426	-	1	£26.83 (Exc VAT)	?	0
51	85584100	Shim	-	4	£1.86 (Exc VAT)	?	0
52	304454	Screw	-	4	£3.84 (Exc VAT)	?	0
53	260290	Bracket	-	1	£39.44 (Exc VAT)	?	0
