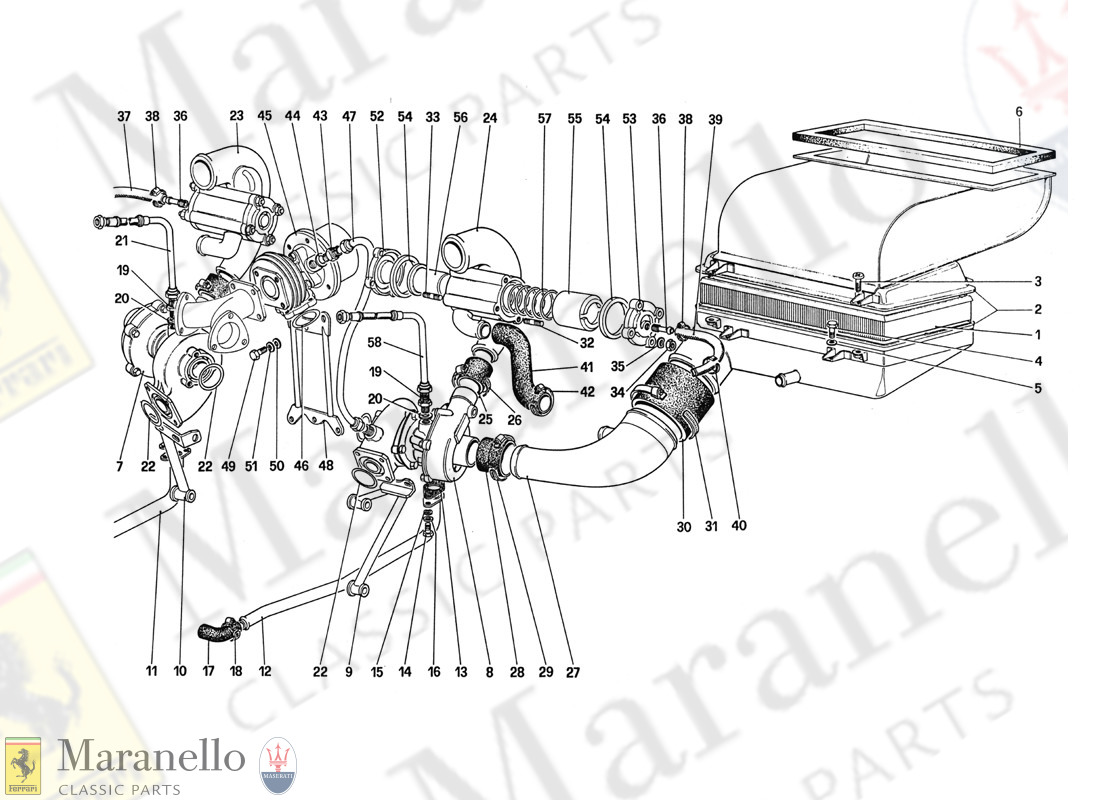

Ferrari / 288 GTO / 011 - Turbocharging System

Reset

< Prev Next >

001 - Crankcase

002 - Crankshaft - Connecting Rods And Pistons - Flywheel

003 - Cylinder Head (Right)

004 - Cylinder Head (Left)

005 - Timing System - Tappets

006 - Timing System - Controls

007 - Fuel Pump And Pipes

008 - Fuel Injection System

009 - Throttle Bodies And Accelerator Control

010 - Inlet Manifolds And Heat Exchangers

011 - Turbocharging System

012 - Exhaust System

013 - Blow-By System

014 - Lubrication System

015 - Lubrication - Filter And Oil Pumps

016 - Cooling System

017 - Water Pump And Pipings

018 - Clutch Release Control

019 - Clutch And Controls

020 - Gearbox Transmission

021 - Differential Housing

022 - Differential And Axle Shafts

023 - Gearbox Housing

024 - Main Shaft Gears

025 - Lay Shaft Gears

026 - Inside Gearbox Controls

027 - Outside Gearbox Controls

028 - Brake Hydraulic System

029 - Brake System

030 - Calipers For Front And Rear Brakes

031 - Hand - Brake Control

032 - Steering Box And Linkage

033 - Steering Column

034 - Front Suspension - Shock Absorber And Brake Disc

035 - Front Suspension - Wishbones

036 - Rear Suspension -Shock Absorber And Brake Disc

037 - Rear Suspension - Wishbones

038 - Wheels

039 - Engine Ignition

040 - Electric Generating System

041 - Air Conditioning Compressor And Controls

042 - Toolkit

101 - Body Shell - Outer Elements

102 - Body Shell - Inner Elements

103 - Body Shell - Inner Elements

104 - Insulations

105 - Front And Rear Bonnet

106 - Doors

107 - Bumpers - Lights - Outer Name

108 - Glasses And Gaskets

109 - Interior Trim - Accessories And Seats

110 - Instrument, Panel And Tunnel

111 - Instruments And Accessories

112 - Electrical System - Fuses And Relays

113 - Windshield Wiper - Washer And Horn

114 - Headlights Lifting Device And Sealed Beams

115 - Heating System

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	115743	Air Filter Element	MP -	2	£32.22 (Exc VAT)		0
2	120799	LH Air Inlet	-	1	POA (Exc VAT)	?	0
2	120798	RH Air Inlet	-	1	£1,455.40 (Exc VAT)	?	0
3	10376017	Screw	-	8	POA (Exc VAT)	?	0
4	10902027	Screw	-	6	£0.21 (Exc VAT)	?	0
	Superseded by 10902024	Screw M6 x 12	N	6	£0.05 (Exc VAT)		0
5	13550276	Washer	-	6	£0.20 (Exc VAT)		0
6	125024	Gasket GTO	MP -	2	£50.81 (Exc VAT)		0
7	123384	RH Turbo Charger GTO	-	1	POA (Exc VAT)	?	0
8	122814	LH Turbo Charger GTO	- £££	1	POA (Exc VAT)	?	0
9	123636	LH Turbo Support	-	1	£1,035.50 (Exc VAT)	?	0
10	123685	Support	-	1	POA (Exc VAT)	?	0
11	122834	Oil Line GTO	-	1	£145.23 (Exc VAT)	?	0
12	122835	Oil Line (Gto)	-	1	£530.14 (Exc VAT)	?	0
13	122833	Gasket	-	2	POA (Exc VAT)	?	0
	Superseded by 144494	Gasket	N	2	£0.55 (Exc VAT)		0
14	10902221	Bolt M6 x 16	-	4	£0.79 (Exc VAT)		0
15	106850	Spring Washer 6mm	-	4	POA (Exc VAT)	?	0
	Superseded by 127494	Wavy Washer 6mm Zinc Coated	N	4	£0.07 (Exc VAT)		0
16	12639701	Washer	-	4	POA (Exc VAT)	?	0
17	123860	Hose	-	2	£598.90 (Exc VAT)	?	0
18	105622	Hose Clip	-	4	£3.30 (Exc VAT)	?	0
	Alternative 12180190	Hose Clip 23-35	N	4	£0.51 (Exc VAT)		0
19	122946	Union	MP -	2	£86.62 (Exc VAT)		0
20	10298360	Copper Washer	-	2	£0.52 (Exc VAT)		0
21	123004	RH Oil Delivery Pipe To Turbo	-	1	POA (Exc VAT)	?	0
22	123385	Metal Sealing Ring (GTO/F40)	-	4	£157.24 (Exc VAT)		0
23	123306	Air Hose GTO	-	1	£2,555.96 (Exc VAT)		0
24	123307	Air Conveyor GTO	-	1	£1,698.22 (Exc VAT)		0
25	123311	Air Hose GTO	-	2	£80.15 (Exc VAT)		0
26	12177190	Hose Clip 50-70	-	4	£3.90 (Exc VAT)	?	0
27	123505	LH Air Intake Hose	-	1	£1,503.94 (Exc VAT)		0
27	123504	RH Air Intake Hose	-	1	£1,503.94 (Exc VAT)		0
28	123312	Air Hose GTO	MP -	2	£67.37 (Exc VAT)		0
29	12177190	Hose Clip 50-70	-	4	£3.90 (Exc VAT)	?	0
30	124449	Air Hose GTO	-	2	POA (Exc VAT)	?	0
31	122890	Clip	-	4	£1.29 (Exc VAT)		0
32	13541021	Stud	-	2	£0.33 (Exc VAT)	?	0
33	13541221	Stud	-	4	£0.34 (Exc VAT)	?	0
	Superseded by 13541224	Stud 6x12 -Shank length 22-	MP N	4	£151.66 (Exc VAT)		0
34	15896211	Nut M6x5	-	16	£0.06 (Exc VAT)		0
35	12601271	Wavy Washer 6mm	-	16	POA (Exc VAT)	?	0
	Superseded by 12601279	Wavy Washer 6mm	N	16	£0.09 (Exc VAT)		0
36	117715	Threaded Connector	-	2	£3.43 (Exc VAT)	?	0
37	124503	Air Hose GTO	-	1	£13.34 (Exc VAT)	?	0
38	12179490	Hose Clip	-	4	POA (Exc VAT)	?	0
	Superseded by 13000190	Hose Clip 10-16mm	N	4	£0.50 (Exc VAT)		0
39	124955	Air Hose GTO	-	1	£13.21 (Exc VAT)	?	0
40	103755	Cable Tie	-	5	POA (Exc VAT)	?	0
41	124454	LH Air Outlet Hose	-	1	£194.72 (Exc VAT)	?	0
41	124453	RH Air Outlet Hose	-	1	£125.54 (Exc VAT)	?	0
42	12180090	Clamp	-	4	£0.66 (Exc VAT)	?	0
43	120748	Threaded Union (Wastegate Valve)	-	1	£35.46 (Exc VAT)	?	0
44	11270260	Copper Washer	-	1	£0.27 (Exc VAT)		0
45	120737	Wastegate Valve GTO	-	1	POA (Exc VAT)	?	0
46	121098	Sealing Ring	MP -	1	£53.17 (Exc VAT)	?	0
47	122386	Valve Line GTO	-	1	POA (Exc VAT)	?	0
48	122668	Bracket	-	1	£153.51 (Exc VAT)		0
49	10978321	Bolt	-	3	£1.16 (Exc VAT)		0
50	12637801	Washer	-	3	£0.09 (Exc VAT)	?	0
	Alternative 12637824	Washer	N	3	£0.06 (Exc VAT)		0
51	106849	Spring Washer	-	3	£0.05 (Exc VAT)	?	0
	Superseded by 127493	Spring Washer 5mm	N	3	£0.07 (Exc VAT)		0
52	124455	Cover	-	2	£316.11 (Exc VAT)		0
53	124456	Cover	-	2	£316.11 (Exc VAT)		0
54	117623	Gasket	MP -	4	£2.78 (Exc VAT)		0
55	118373	Piston	-	2	£88.71 (Exc VAT)		0
56	117625	Guide	-	2	£87.44 (Exc VAT)		0
57	118616	Spring	-	2	£24.21 (Exc VAT)		0
58	126021	LH Oil Delivery Pipe To Turbo	-	1	POA (Exc VAT)	?	0
