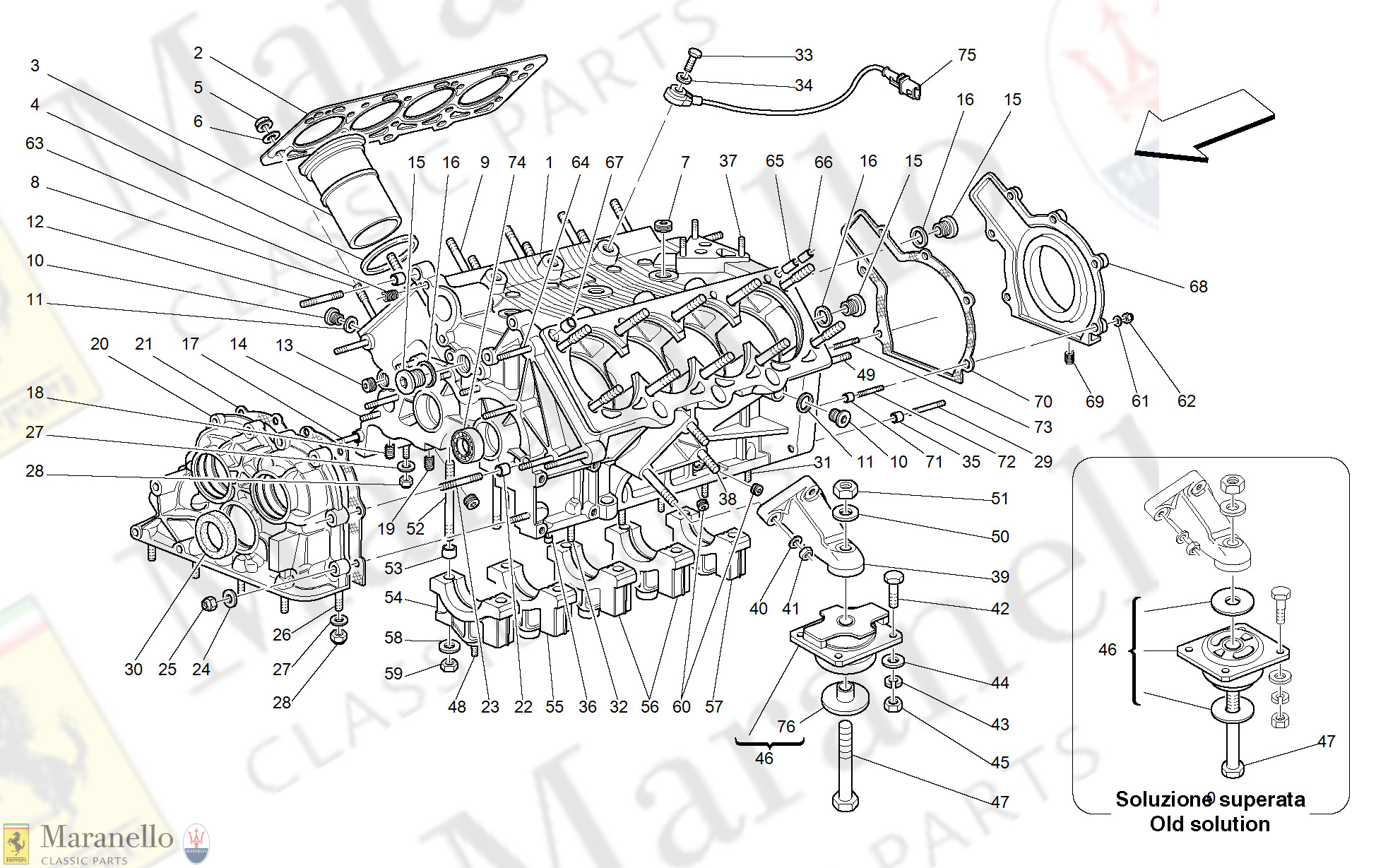

001 - Crankcase

002 - Driving Shaft - Connecting Rods And Pistons

003 - R.H. Cylinder Head

004 - L.H. Cylinder Head

005 - Timing - Tappets And Shields

006 - Timing - Controls

007 - Injection Device - Ignition

008 - Pneumatics Actuator System

009 - Secondary Air System -Valid For Usa My 2000,2001,2002,2003,2004 And Cdn My 2000,2001,2002,2003,2004-

010 - Fuel Pumps And Pipes

011 - Fuel Tanks And Union

012 - Fuel Tanks - Fixing And Protection

013 - Antievaporation Device -Not For Usa My 2000,2001,2002,2003,2004 And Cdn My 2000,2001,2002,2003,2004-

014 - Antievaporation Device -Valid For Usa My 2000,2001,2002,2003,2004 And Cdn My 2000,2001,2002,2003,200

015 - Air Intake Manifold

016 - Air Intake

017 - Air Intake Manifold Cover

018 - Electronic Accelerator Pedal

019 - Exhaust System

020 - Racing Exhaust System -Optional-

021 - Lubrication System And Blow-By System

022 - Pumps And Oil Sump

023 - Nourice

024 - Cooling System

025 - Cooling System Radiators

026 - Water Pump And Oil/Water Heat Exchanger

027 - Clutch And Controls -Not For F1-

028 - Clutch And Controls -Valid For F1-

029 - Pedals -Not For Gd-

030 - Pedals -Valid For Gd-

031 - F1 Clutch Hydraulic Control -Valid For F1-

032 - Power Unit And Tank -Valid For F1-

033 - Gearbox - Covers

034 - Main Shaft Gears

035 - Lay Shaft Gears

036 - Inside Gearbox Controls

037 - Outside Gearbox Controls

038 - Differential And Axle Shaft

039 - Brakes And Clutch Hydraulic Controls -Not For Gd-

040 - Brakes And Clutch Hydraulic Controls -Valid For Gd-

041 - Brake Booster System

042 - Brake System -Not For Gd-

043 - Brake System -Valid For Gd-

044 - Calipers For Front And Rear Brakes

045 - Hand-Brake Control

046 - Hydraulic Steering Box And Serpentine

047 - Steering Column

048 - Hydraulic Steering Pump And Tank

049 - Front Suspension - Shock Absorber And Brake Disc

050 - Front Suspension - Wishbones

051 - Rear Suspension - Shock Absorber And Brake Disc

052 - Rear Suspension - Wishbones

053 - Wheels

054 - Battery

055 - Current Generator - Starting Motor

056 - Air Conditioning Compressor

057 - Tools Equipment And Accessories

058 - Documentation And Accessories

059 - Spare Wheel And Equipment -Optional-

100 - Body - Outer Trims

101 - Frame - Complete Front Part Structures And Plates

102 - Frame - Front Elements Structures And Plates

103 - Central Side Elements And Plates

104 - Frame - Rear Elements Structures And Plates

105 - Frame - Rear Elements Sub-Groups

106 - Roof - Structure

107 - Flat Floor Pan And Wheelhouse

108 - Insulations

109 - Passengers Compartment Carpets

110 - Front Compartment Trims

111 - Roof Panel Upholstery And Accessories

112 - Removable Top

113 - Front Hood And Opening Device

114 - Engine Bonnet

115 - Opening Devices For Engine Bonnet And Gas Door

116 - Doors - Framework And Coverings

117 - Doors - Opening Control And Hinges

118 - Doors - Power Window And Rearview Mirror

119 - Front Bumper

120 - Rear Bumper

121 - Glasses And Gaskets

122 - Manual Seat - Safety Belts

123 - Electrical Seat - Safety Belts

124 - Electrical Seat - Guide And Movement

125 - Racing Seat-4 Point Belts-Roll Bar

126 - Tunnel - Framework And Accessories

127 - Dashboard

128 - Dashboard Drawer

129 - Air-Bags

130 - Passenger Air-Bag Exclusion Kit

131 - Dashboard Instruments

132 - Front And Rear Lights

133 - Shields - Outside Finishing

134 - Windshield, Glass Washer And Horns

135 - Electrical System

136 - Front Passengers Compartment Control Stations

137 - Front And Motor Compartments Electrical Boards And Sensor

138 - Rear Passengers Compartment Control Stations

139 - Anti-Theft Electrical Boards And Devices

140 - Evaporator Unit

141 - Air Conditioning System

142 - Stereo Equipment

143 - Radio Amplifier System -Valid For Version With Two Seat Back Pockets-

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
-	180656	Crankcase Complete	-	1	£3,286.99 (Exc VAT)	?	0
1	173885	Crankcase Not as spare part- -With the complete crankcase	-	1	POA (Exc VAT)	?	0
2	174853	Cylinder Head Gasket	-	2	£489.99 (Exc VAT)	?	0
3	136875	Cylinder Liner	-	8	£489.99 (Exc VAT)	?	0
4	136258	O-Ring Cylinder Liner	-	8	£4.49 (Exc VAT)		0
5	148093	Nut Cylinder Head M11 x 1 x 10	-	20	£19.99 (Exc VAT)		0
6	176208	Washer Crankcase front and rear side	-	8	£2.99 (Exc VAT)		0
6	151117	Washer Crankcase central side	-	12	£0.93 (Exc VAT)		0
7	14325540	Threaded Plug	-	3	£7.99 (Exc VAT)		0
8	176148	Stud Cylinder Head Crankcase front and rear side	-	8	£8.69 (Exc VAT)	?	0
9	148311	Stud - Cylinder Head Crankcase central side	-	12	£26.99 (Exc VAT)	?	0
10	150731	Drain Plug M14 x 1.5 Not as spare part- -Replaced by 200988	-	2	£3.29 (Exc VAT)		0
10	200988	Drain Plug	-	2	POA (Exc VAT)	?	0
11	10280060	Copper Washer 14 - 20 x 1.5mm	-	2	£0.17 (Exc VAT)		0
12	13544024	Stud 8x16 Stem 50 Not as spare part- -Replaced by 13544034	-	2	£0.60 (Exc VAT)		0
12	13544034	Stud 8x16 Stem 50	-	2	£1.09 (Exc VAT)	?	0
13	14325140	Threaded Plug	-	1	£1.59 (Exc VAT)		0
14	13543424	Stud	-	5	£1.69 (Exc VAT)		0
15	10275011	Drain Plug M22 x 1.5	-	3	£1.59 (Exc VAT)	?	0
16	10263460	Gasket	-	3	£0.30 (Exc VAT)		0
17	13544024	Stud 8x16 Stem 50	-	1	£0.60 (Exc VAT)		0
18	13525870	Heli-Coil	-	3	£2.29 (Exc VAT)		0
19	13525770	Heli-Coil	-	1	£2.59 (Exc VAT)	?	0
	Superseded by 103830	Heli Coil	N	1	£2.95 (Exc VAT)		0
20	169754	Cover Not as spare part- -With the complete crankcase	-	1	POA (Exc VAT)	?	0
21	153921	Front Cover Gasket	-	1	£10.99 (Exc VAT)	?	0
22	100041	Dowel	-	2	£6.19 (Exc VAT)		0
23	13543624	Stud Bolt M8x16 -Shank length 30-	-	1	POA (Exc VAT)	?	0
24	12601374	Wavy Washer 8mm	-	9	£0.02 (Exc VAT)		0
25	101139	Nyloc Nut 8x1.25mm	-	9	£0.26 (Exc VAT)		0
26	13543524	Stud Bolt M8x16 -Shank length 25-	-	6	£3.99 (Exc VAT)		0
27	12604474	Wavy Washer	-	18	£0.05 (Exc VAT)		0
28	101139	Nyloc Nut 8x1.25mm	-	18	£0.26 (Exc VAT)		0
29	13547034	Stud 55mm	-	4	£2.69 (Exc VAT)		0
30	163985	Front Crankshaft Oil Seal	-	1	£29.99 (Exc VAT)		0
31	13543524	Stud Bolt M8x16 -Shank length 25-	-	8	£3.99 (Exc VAT)		0
32	13543624	Stud Bolt M8x16 -Shank length 30-	-	4	POA (Exc VAT)	?	0
33	16043834	Screw M8 x 30	-	4	£0.23 (Exc VAT)		0
34	11198074	Washer 8mm	-	4	£0.06 (Exc VAT)		0
35	165351	Locating Dowel	-	2	£2.79 (Exc VAT)		0
36	102725	Dowel	-	2	£0.93 (Exc VAT)		0
37	13543524	Stud Bolt M8x16 -Shank length 25-	-	3	£3.99 (Exc VAT)		0
38	13546624	Stud 10x1.25x20 Stem 35	-	4	£0.74 (Exc VAT)		0
38	13547124	Stud 10x1.25x20 Stem 60 Right side support	-	2	£0.97 (Exc VAT)		0
39	175156	Engine Support Valid till Ass. Nr. 34874	-	2	£76.99 (Exc VAT)	?	0
39	183804	Engine Support Valid from Ass. Nr. 34875	-	2	£76.99 (Exc VAT)	?	0
40	11190574	Washer	-	6	£0.06 (Exc VAT)		0
41	133988	Plain Nut M10 x 1.25 x 8	-	6	£0.17 (Exc VAT)		0
	Alternative 12164711	Nut M10 x 1.25 x 8	N	8	£0.21 (Exc VAT)		0
42	15970634	Screw Not as spare part- -Replaced by 15970734	-	8	POA (Exc VAT)	?	0
42	15970734	Screw	-	8	£0.38 (Exc VAT)	?	0
43	127497	Spring Washer 10mm	-	8	£0.05 (Exc VAT)		0
44	14496624	Washer D. 10.50-21 x2 Not as spare part- -Replaced by 12646824	-	8	£0.05 (Exc VAT)		0
44	12646824	Washer	-	8	£0.09 (Exc VAT)	?	0
	Superseded by 14496624	Washer D. 10.50-21 x2	N	8	£0.05 (Exc VAT)		0
45	133988	Plain Nut M10 x 1.25 x 8	-	8	£0.17 (Exc VAT)	?	0
46	180113	Engine Support Pad For the cars till Ass. Nr. 34874 the new flexible pad 182142 + the retaining washer 182141 to mount together- -See SAT technical information	-	2	POA (Exc VAT)	?	0
	Superseded by 182142	Flexible Pad	N	2	£119.99 (Exc VAT)		0
46	182142	Flexible Pad Valid from Ass. Nr. 34875	-	2	£119.99 (Exc VAT)		0
47	15864234	Bolt M16 x 1.5 x 115 Valid till Ass. Nr. 34874	-	2	£3.49 (Exc VAT)		0
47	11369634	Bolt Valid from Ass. Nr. 34875	MP -	2	POA (Exc VAT)	?	0
48	13516624	Stud	-	4	POA (Exc VAT)	?	0
49	13547234	Stud 65mm	-	2	£12.99 (Exc VAT)	?	0
50	12601774	Wavy Washer 17mm	-	2	POA (Exc VAT)	?	0
	Alternative 12601774/A	Wavy Washer 17mm	N	2	£0.59 (Exc VAT)		0
51	176573	Nut M16 x 1.5	-	2	£1.59 (Exc VAT)		0
52	180263	Stud Main Bearing	-	10	£7.89 (Exc VAT)	?	0
53	125317	Dowel	-	10	£0.96 (Exc VAT)	?	0
54	152158	Front Hat Not as spare part- -With the complete crankcase	-	1	POA (Exc VAT)	?	0
55	152159	Front Intermediate Hat Not as spare part- -With the complete crankcase	-	1	POA (Exc VAT)	?	0
56	152098	Intermediate Central and Rear Hat Not as spare part- -With the complete crankcase	-	2	POA (Exc VAT)	?	0
57	152099	Rear Hat Not as spare part- -With the complete crankcase	-	1	POA (Exc VAT)	?	0
58	103842	Washer	-	10	POA (Exc VAT)		0
59	103841	Nut	-	10	POA (Exc VAT)	?	0
60	164400	Threaded Plug	-	2	£2.99 (Exc VAT)	?	0
61	12620474	Wavy Washer	-	6	£0.05 (Exc VAT)		0
62	15896214	Nut M6 x 5	-	6	£0.03 (Exc VAT)		0
63	13525870	Heli-Coil	-	4	£2.29 (Exc VAT)		0
64	13544024	Stud 8x16 Stem 50	-	2	£0.60 (Exc VAT)		0
65	156862	Non Return Valve	-	2	£13.99 (Exc VAT)	?	0
66	175644	Dowel	-	2	£2.69 (Exc VAT)	?	0
67	173479	Dowel	-	2	£19.99 (Exc VAT)	?	0
68	170527	Rear Cover Not as spare part- -With the complete crankcase	-	1	POA (Exc VAT)	?	0
	Alternative 170527/U	Rear Cover Offer ends 01/Jan/2050 subject to availability.	U	1	£310.00 £240.50 (Exc VAT)		0
69	13525570	Heli-Coil	-	2	POA (Exc VAT)	?	0
70	170529	Rear Cover Gasket	-	1	£19.99 (Exc VAT)		0
71	103038	Dowel	-	2	£1.09 (Exc VAT)		0
72	13541124	Stud 6x12 Stem 20	-	2	£18.99 (Exc VAT)		0
73	13540824	Stud	-	4	POA (Exc VAT)	?	0
74	171177	Ball Race Bearing	-	2	£13.99 (Exc VAT)	?	0
75	177672	Sensor For Firing	-	2	£139.99 (Exc VAT)		0
76	182141	Retaining Washer Valid from Ass. Nr. 34875	-	2	£26.99 (Exc VAT)		0
